Used 2018 STAR SV-38R | Swiss Type Automatic Screw Machines

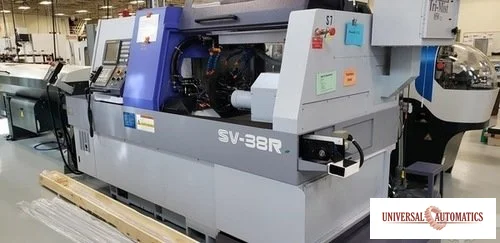

STAR SV-38R Type B CNC Swiss Type Automatic Lathe with
Fanuc Series 31i-B5 Controller and Standard Accessories
SV-38R Type B STANDARD ACCESSORIES:
• CNC Unit (Fanuc series 31i-B5) • Stand-alone type coolant tank
• Operation panel & 10.4" color LCD display • Coolant Level Detector (lower limit)
• Automatic Centralized Lubrication Device (with level detector) • Revolving guide bush drive unit
• Drive system for power driven tools (turret tool post) • Coolant Flow Detector [1A459]
• Drive system for power driven tools (back 8-spindle unit) • Electronic Handwheel
• High-pressure coolant unit interface • Broken Cut Off Tool Detector
• Spindle clamp unit (main/sub spindle) • Automatic barfeeder interface
• Air purge unit for revolving guide bush • RS232C interface
• Work Lights (cutting & headstock room) • Non Guide Bush Version [1A407]
• Earth leakage breaker (rated sensitivity current: 30mA) • Parts Ejection Detector [1A409]
• 4-Spindle milling unit (gang tool post) - tools included • Leveling Bolts & Leveling Pads
• Cs contour control (main/sub spindle) • Expanded I/O Module Unit [0R449]
• Synchronized Revolving Guide Bush F'48 [1A301] • Hydraulic unit
• Beacon Interface (1A428) • Pneumatic unit
• Main collet [1A351] • Back Attachment
• Sub collet [1A371] • Back 8-spindle unit
• Spindle cooling unit • Door Interlock System
• Sub spindle air purge unit • Tool Kit (1 set)
• Revolving guide bush unit • Parts Conveyor
• Wedge type 5-station tool holder: 20mm = 1 tool; 16mm = 4 tools • Chip Conveyor Interface (1A444)
31i-B5 FANUC CONTROLLER STANDARD OPTIONS:
• Number of control axes (total 12 - 4 simultaneous on Path 1, 4 simultaneous on Path 2, 1 axis on Path 2, and 3 simultaneous on Path 3)
• Synchronous/Superposition control (X1-X3, Y1-Y3, Z1-Z2 axes) • Timer function
• Tool wear offset (60 pairs each for Paths 1, 2, & 3) • Parts counter
• Synchronous rotation/phase control of main & sub spindles • Circular arc radius specification
• Operation panel (10.4" color LCD display) • Alarm help function
• Feed rate override (0-150% - rotary switch with 16-step) • Manual handle retrace
• Rapid traverse override (0, 1, 5, 25, 100% - 5-step) • Override cancel
• Tool selection (T-code command) • Error detect
• Number of registerable programs (1,000 programs total for Paths 1, 2, & 3) • Feed command method
• Servo torque limiter and servo monitor function • Memory protect function
• Coolant Unit 0.7MPa [1A458] • Background editing
• Coolant Piping for Gang Tool [1A463] • Threading function
• Coolant Piping for Turret [1A466] • Motion Control
• Coolant Piping Back 8-Spindle Unit [1A467] • Clock display
• Coolant Piping for Guide Bush [1A468] • 3D Handle Feed
• Coolant Unit Signal Cable 32 Contacts Ver [1A486] • Absolute position detector
• Rotary Parts Ejector with Spring [1A481] • Cut-off process function
• Rotary Parts Ejector with Spring for Sub Collet [1A481A] • Position display function
• High Pressure Coolant Unit Interface • 93285005 Spare M Codes (2 pairs)
• Automatic coordinate system setting function • 93285102 Constant surface speed control
• Automatic erase display function • 93285103 Spindle Speed Fluctuation Detection
• Machining data display function • 93285104 Multiple canned cycle
• Program list display function • 93285105 Chamfering Corner R
• Keep relay conversational function • 93285106 Tool nose radius compensation
• Tool geometry offset function • 93285107 Canned Cycle for Drilling
• Tool life management by tool number counter • 93285108 Variable Lead Threading
• Collet automatic adjusting function • 93285110 Threading Retract
• Guide Bush/Non Guide Bush change function • 93285112 Continuous threading
• Program Storage (6 MB in total for Paths 1, 2, & 3) • 93285114 Programmable data input
• Spare M code (4 pairs) • 93285118 Direct Drawing Dim.Programming
• Circular Threading • 93285124 Cylindrical Interpolation
• Program check function • 93285125 Polar Coordinate Interpolation
• 3D Coordinate Conversion • 93285126 Rapid tapping
• Multi-path program editing function • 93285128 Increment system 1/10
• Auto power shut-off function • 93285132 Polygon Machining Unit
• Offset display function • 93285134 Helical Interpolation
• Alarm message history • 93285137 Cs Contouring Control
• Coordinate command system • 93285201 Inch/metric conversion
• Decimal point input • 93285202 Run Hour Parts Number Display
• Diametric direction command • 93285209 Add'l custom macro common variables
• Interpolation function (Linear/Circular) • 93285210 Extended Part Program Editing
• Chamfering • 93285310 Star Run Hour Display

Equipped with:
Presetter
3 [431-09] Wedge Type 2 Station Tool Holder 16mm
2 [581-12] Triple Sleeve Holder Main/Back 32mm
6 [421-26] Counter Face Drill Sleeve ER-20 (Applicable Sleeve Holders: 431-
11, 581-12)
3 [191-01] Tilting Head 2-Spindle Drilling Unit - ER16
2 [201-50] Cross Drilling Unit ER16
1 [431-51] 2 Spindle Cross Drilling Unit ER-16
2
[431-52] High Speed 2 Spindle Cross Drilling Unit ER-11 (MAX 9,500
RPM)
2 [571-55] Milling Unit ER-16
2 [581-52] Cross Drilling Unit ER-16
2 [10101] Drill Sleeve ER20
2 [581-79] Boring Sleeve 3/8"
1 [1A341/1A438] Synchronized Rotary Magic Guide Bushing Unit
1 [NJ2000E] High Pressure Pump (OIL ONLY) 480 Volt Electrical
Package
1 [NJMIST] Tri-Mist Collector
1 [NJCHILLERE] NE15OIL Chiller System 480 Volt Electrical Package

LNS ALPHA 538 Performance Package - 1-1/2" (38 mm) 3 Guiding
Channel Set with Pusher, Rotating Sleeves, Remnant Retract, Compact
Telescopic Swiss Safety Connection, Custom Electrical Cable Package
with Plugs, 2 T-Tube Liner and Support Bushing, Two Position Hydrostatic
Front Stabilizer, 1 Bushing Set for Hydrostatic Front Stabilizer, 1 Remnant
Retract Collet/Cone and Collet Adapters, 18.5" (470 mm) "Z" Axis
Retraction System, Patented 3-S Electronic Headstock Synchronization.
[NOTE: A collet and front stabilizer bushing are required for each bar diameter. As the bar
diameter
1 Additional Bushing For Hydrostatic Front Stabilizer (one set required per
stock size)
3 Spindle Liner for non-guide bushing (required for each channel size)
1 Two Z-axis barfeed positions with safety switches for non-guide bushing
machining capabilities
1 Outboard stabilizer for non-guide bushing
1 Remnant Collet From .250" to 1.338" (1 Collet Required For Each Size Bar)
1 Two position retract mechanism due to deeply recessed spindle
(Required for SR-38 & SV-38R)
