Used 2017 QUICK-TECH T8-HY | 5-Axis or More CNC Lathes
Have one to sell?
ConditionUsed
1 available

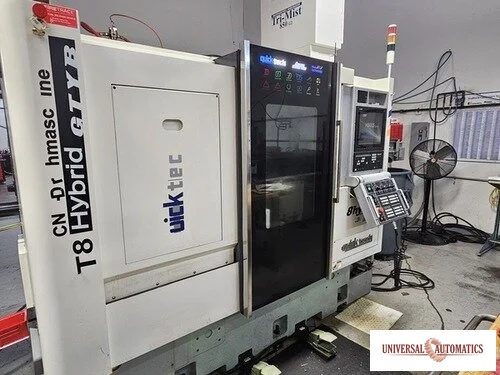

QUICK-TECH T8 HYBRID (GTYB) 9-Axis Twin Spindle Turn / Mill Center with Turret and B axis (used) New 2017 w/Combo turret and B-axis gang slide.
The QuickTECH T8 HYBRID combines powerful main spindle turning utilizing a 3 axis BMT-55 power turret with a sub spindle featuring a 4 axis gang slide, including a 360 degree B axis. This, high production CNC turning center is cast from Meehanite iron. With a 65mm bar capacity, this unique bar processing center provides complete part machining including all complex milling functions. The T8 HYBRID features 9 total axes, 2 turning spindles, 2 live milling spindles, a B axis, and a minimum capacity of 38 tools. .
Standard Machine Accessories
1 set of BMT-55 turret static tool holders
(12)live tools for B axis(ER-20 collets)
(1)60mm collet chuck for main spindle and (1) 42mm collet chuck for sub spindle)
(5)Rear O.D. Tool change KM-25 tool holder bases
(4)Rear I.D. Tool holders (ER-20 collets)
ER-20 collet set (box)
Parts catcher
Parts conveyor
Chip Conveyor
Bar feeder interface
400 PSI / 8GPM high pressure coolant pump
75 PSI / 20 GPM floor coolant pump
Full enclosed machine guards
Auto lubrication system
1 set of machine and control manuals
Main Spindle Capacity
Swing over bed 19.7”
Swing over cross slide 11.8”
Maximum bar working capacity 2.56” (65mm)
Maximum turning length 13.8”
Collet Chuck Type DIN KK6-185E60B (60mm)
Spindle nose A2-6
Hole through draw tube 2.6” (66mm)
Spindle speed range (std.) 4000 RPM
Spindle motor 15HP C axis increment .001 degrees
Sub Spindle Capacity
Maximum bar working capacity 1.65” (42mm)
Maximum turning length 13.2”
Collet Chuck Type DIN KK5-173E/42B (42mm)
Spindle nose A2-5
Hole through draw tube 1.26”
Spindle speed range 4000 RPM
Spindle motor 7.5HP Integral motor
C axis increment .001 degrees
Travel and Feed
Maximum cross travel (turret X1 axis) 6.3”
Maximum off center travel (turret Y1 axis) 3.15” (+/- 1.57”)
Maximum longitudinal travel (turret Z1 axis) 14.76"
Maximum cross travel (X2 axis) 18.5”
Maximum vertical travel (Y2 axis) 14.76”
Maximum longitudinal travel (Z2 axis) 13.2"
Maximum B axis travel (B1, B2 axes) 360 degrees / .001 degree resolution
X1, X2, Y1, Y2, Z1, Z2, B1, B2 servo motors 2 HP
Ballscrew diameter x pitch 1.25” (32mm) x 10mm pitch
Rapid traverse rate 1181”/ min.
Tooling System (Main)
Tooling type BMT-55 servo turret
Number of tools 12
Number of live tool stations 12
Square shank size 1” (25mm)
Boring bar capacity 1.25” (25mm)
Turret index time .3 secs / station, .5 secs 180 degrees
Live tool spindle motor 5HP
Live tool spindle speed 4000
Tooling System (Sub)
Tooling type Gang Tool/Servo Y axis/KM-25 quick change Number of turning tools 5 O.D., 9 I.D.
Square shank size .75” (20mm)
Boring bar capacity .75” (ER-20)
B axis 360 degrees
B axis index time .3 secs / 90 degrees, .6 secs 360 degrees
Number of live tools 12
Live tool spindle motor 2HP.
Live tool spindle speed 4000
Live tool shank ER-20 collet
General
Positioning accuracy +/- .0002" full stroke
Repeatability +/- .00015"
Coolant tank capacity 65 gallons
Coolant pump motor 1 HP flood / 3HP high pressure
Machine Weight 13,420 LBS
Floor Space with chip conveyor 135" X 80" x 77"
Machine Power Source 208/220 Volts, 3 Phase 100 Amps**
Hydraulic pump motor 1HP
Turning Spindles
The main spindle sports a 15HP high torque spindle motor. The sub-spindle is equipped with a 7.5HP high torque integral spindle motor for backworking. The main spindle has a 8” chuck with 65mm bar capacity (60mm with collet chuck) and the sub-spindle has 32mm bar capacity. Both spindles feature a full continuous C axis with braking system. The main spindle is standard with either the 8” 3 jaw chuck or 60mm DIN-185E-60B collet chuck. The sub spindle is standard with the 42mm DIN-173E-42B collet chuck. The main and sub-spindle are synchronized for fast and accurate part transfer. Both spindles employ P4 high precision bearings for stability and heavy cutting ability.
Tooling System
The main spindle features a rigid 12 station BMT-55 live turret with 5HP spindle motor and 80mm of true linear Y axis travel. The turret features fast servo motor index and rigid hydraulic clamping. All 12 stations can be live. The sub spindle features a unique 4 axis gang tooling system consisting of linear X,Y, and Z axes plus a rotary 360 degree B axis. The sub tool post features 5 O.D. turning tools, 9 I.D. turning tools, and 12 live tools. The live tools are mounted in a continuous 360 degree B axis. The live tools are powered by a 2HP spindle motor. Rigid tapping is standard in both the turret and the B axis.
Construction
The machine frame and all major components are made from the highest quality cast iron. The machine weighs in at an impressive 13,420 lbs. The bed is a one piece 75 degree slant bed. The turret Y axis is a true linear axis, perpendicular to X for ultimate precision. The T8 Hybrid uses large, 35mm Hiwin roller type linear guideways in all linear axes. The 35mm rails increase stability and allow heavier cutting. The large 32mm ballscrews are double anchored, pre-tensioned and direct coupled to the Mitsubishi servo motors thus promoting precision.
CNC Controls
The machine is equipped standard with the fully featured and powerful Mitsubishi M830S control with 15” LCD. All spindles and axes use Mitsubishi AC servo motors and Mitsubishi amplifiers. The completely matched Mitsubishi CNC system provides extreme reliability and high performance. A 3 year warranty is standard on the CNC system. Optionally, the Fanuc OiT-F with 15” LCD is available. The Fanuc system utilizes all Fanuc servo and spindle motors and drives and comes with a standard 2 year warranty.
Standard Features
The machine come with standard features necessary for production turning such as collet chucks, parts catcher, parts conveyor, 400 PSI coolant pump, chip conveyor, and bar feeder interface.
