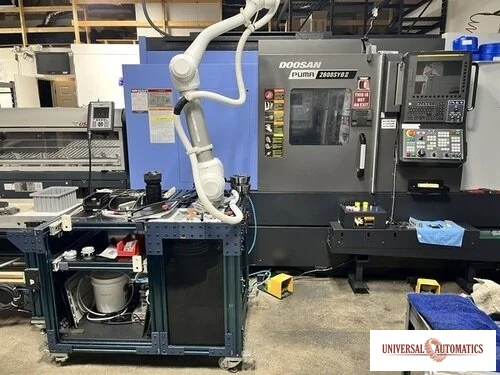

Used 2020 DOOSAN PUMA 2600 SYB(II) | CNC Lathes

MAIN FEATURES
• Rigid 30-degree one-piece cast-iron slant bed design with solid box way construction
• 2,800 rpm main spindle - 22 kW / 30 hp high speed - high torque digital AC spindle
motor
• 10 hp, 4,500 rpm sub spindle motor with body positioning by ball screw & servo
motor
• Unexpected disturbance torque detection function
• 12 station with 24 position heavy duty servo controlled turret (.15 second turret
swivel) with rigid base mounted tooling (BMT) system
• Large 4.0" bar capacity
• 14.8" maximum turning diameter
• Main - sub spindle synchronization
• Fast 1,181 ipm Z axis rapid traverse
• Full contouring C-Axis on main and sub spindle
• Y axis mill / drill with rigid tapping on both main spindle, sub spindle and rotary tools.
3 rotating tool holders included in standard tooling package
• 5,000 rpm 10 hp rotating tool spindle motor. Live tools can be mounted on all stations
• Y-Axis turret with 4.13” (±2.065”) total travel
• Bolt up chip conveyor design for easy access and removal of coolant tank
• FANUC 0i-Plus control with iHMi touch screen interface with swiveling operator's
panel
• X-axis glass scales
• EZ Guide I Conversational Programming
• Tool Load Monitoring System
SPECIFICATIONS
CAPACITY:
Swing over bed (swing over front door) 780 mm (680 mm) (30.7" (26.8"))
Swing over carriage 630 mm (24.8")
Maximum turning diameter 376 mm (14.8")
Maximum turning length 725 mm (28.5")
Distance between main and sub spindle noses 1,076 mm (42.36")
MAIN SPINDLE:
Spindle speed 2,800 rpm
Spindle nose A2-11
Draw tube ID 103 mm (4.055")
Spindle bore diameter 115 mm (4.52")
AC spindle motor (30 min. rating) 22 kW (30 hp)
Maximum spindle torque (15 min. rating) 1,123 Nm (828 ft-lb)
Standard chuck size 315 mm (12.4")
Standard chuck through hole ID 103 mm (4.05")
Max Bar Length (for bar feed application) 1,220 mm (48”)
C-AXIS – MAIN SPINDLE:
Minimum programmable angle 0.001 degree
Rapid traverse rate 200 rpm
C-axis repeatability ±0.006 degree
C-axis positioning accuracy 0.0167 degree
SUB SPINDLE:
B axis travel (sub spindle) 830 mm (32.6”)
Sub spindle guideway span 335 mm (13.2”)
Spindle speed 4,500 rpm
Spindle nose A2-5
Draw tube ID 50 mm (1.968")
Standard chuck though hole ID 68 mm (2.68")
Spindle bore diameter 62 mm (2.44")
AC spindle motor 30 min. rating 7.5 kW (10 hp)
Rapid traverse rate 30 m/min (1,181 ipm)
Maximum spindle torque (30 min. rating) 85 Nm (63 ft-lbs)
Standard chuck size 210 mm (8.0")
C-AXIS – SUB SPINDLE:
Minimum programmable angle (degrees) 0.001 deg
Rapid traverse rate 200 rpm
C-axis repeatability ±0.006 deg
C-axis positioning accuracy 0.0167 deg
BED, SADDLE & CROSS SLIDE:
Angle of slant bed 30-degree
X axis travel 260 mm (10.2”)
Z axis travel 830 mm (32.67”)
X axis guide way span 321 mm (12.63”)
Z axis guide way span 437 mm (17.2")
X axis rapid traverse rate 30 m/min (1,181 ipm)
Z axis rapid traverse rate 30 m/min (1,181 ipm)
X axis ball screw diameter 32 mm (1.26")
Z axis ball screw diameter 36 mm (1.42")
X axis feed thrust (continuous) 6,761 N (1,520 lb)
X axis feed thrust (intermittent) 9,465 N (2,128 lb)
Z axis feed thrust (continuous) 12,414 N (2,790 lb)
Z axis feed thrust (intermittent) 17,379 N (3,907 lb)
B axis feed thrust (continuous) 6,761 N (1,520 lb)
B axis feed thrust (intermittent) 9,465 N (2,128 lb)
X axis repeatability ±0.002 mm (±0.00008")
Z axis repeatability ±0.003 mm (±0.00012")
TURRET:
Number of tools 12
Number of index positions 24
Tool holder type BMT-65
Turning tool shank size (metric turret 25 mm) 1.0"
Boring bar diameter (metric turret 50 mm) 2.0"
Boring bar diameter, sub spindle (metric turret 25 mm) 1.0"
Turret index time (next station swivel time) 0.15 second
Tool selection Bi-directional
Curvic coupling diameter 230 mm (9.05")
Turret clamping force 53 kN (11,915 lb)
Turret index repeatability ±0.0005 degree
ROTARY TOOLS:
Rotating tool RPM 5,000 rpm
Rotating tool spindle motor (5 min. rating) 7.5 kW (10 hp)
Rotating tool torque (5 min. rating) 95.5 Nm (70 ft-lb)
Rotating tool collet type ER 32
Milling collet capacity 1/8 to 3/4"
* Max X-axis tool length with Y-axis in any position is 83mm (3.27")
Y-AXIS:
Y-axis travel (total) 105 mm (±52.5mm) (4.13” (±2.065”))
Y-axis travel (above center) 52.5 mm (2.065”)
Y-axis travel (below center) 52.5 mm (2.065”)
Y-axis rapid traverse rate 10 m/min (394 ipm)
Y-axis repeatability ±0.003 mm (±0.00012")
Y-axis feed thrust (continuous) 8,451 N (1,900 lb)
Y-axis feed thrust (intermittent) 11,832 N (2,660 lb)
COOLANT SYSTEM:
Coolant pump pressure 4.5 bar (65 psi)
Coolant pump motor .75 kW (1.0 hp)
Coolant tank capacity 220 l (58 gal)
HYDRAULIC / LUBRICATION:
Hydraulic tank capacity 20 l (5.2 gal)
Hydraulic oil required* Mobil DTE #24 or Shell Tellus 32
Way lubrication tank capacity 2.0 l (0.5 gal)
Way lubrication oil required* Mobil Vactra #2 or Shell Tonna T68
* Cross reference these numbers for other brands
GENERAL:
Machine weight 6,650 kg (14,660 lb)
Floor space - length x width 3,873 mm x 1,945 mm (153” x 76.5”)
Floor space – length with hinge belt chip conveyor 4,776 mm (188”)
Machine Height 2,163 mm (85”)
Height from floor to spindle center 1,110 mm (43.7”)
Voltage required 205-235V/3 ph/60 Hz
Power requirement 55 kVA (144 Amps @ 220 Volts)HYDRAULIC / LUBRICATION:
