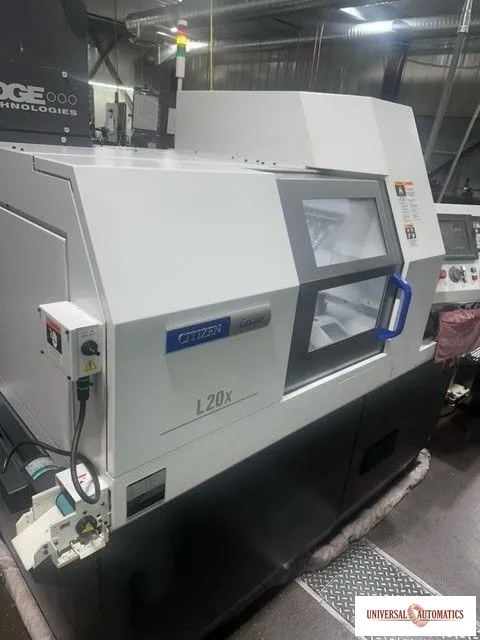

CITIZEN L20E X (2M10) LFVRD Swiss Type CNC Lathe (used) New 2021 & 2023 Two Available!

The CINCOM L20 is a state of the art Swiss Turning Center manufactured by CITIZEN MACHINERY CO., LTD. It features the ALL axis Simultaneous Cincom System M70 Control (Mitsubishi Meldas 70LPC-VU).

Its standard Eight Cutting Axes (X1, Y1, Z1, X2, Y2, Z2, C1, C2) and One bar loader axis (A7) can make easy work of your toughest applications.

The user-friendly editing function which utilizes Multi line Multi axes programming, along with superimposed and synchronized control make setting up the most complex jobs easy.

I. Including:
1) Simultaneous Axes control
2) AC Servo Axes Control
3) Main Spindle Speed 200 ~ 10,000 rpm 5-digit stepless command
4) Back Spindle Speed 200 ~ 10,000 rpm 5-digit stepless command
5) Live Tool Spindle Speed
Gang Tool Post: 200 ~ 9,000 rpm 4-digit stepless command
Opposite Tool Post: 200 ~ 7,500 rpm　4-digit stepless command
Back Tool Post: 200 ~ 7,500 rpm 4-digit stepless command
6) Rotary Tools Drive System
7-Stations on Gang Tool Post (L220EU36B + GSE3310)
3-stations on Opposite Tool Post (+3-stationary) (L220EU128B)
4-Stations on Back Tool Post (+ 4-stationary) (L220EU155B)
7) Main Spindle Collet Chuck Unit (S&M TF25)
8) Back Spindle Collet Chuck Unit (S&M TF25)
9) Work-piece Separator (max part length = 80mm)
10) Cutting Oil Tank with Oil Level Detector (40 Gal Oil capacity)
11) Back Spindle Air Blow Unit
12) Synchronous Type Rotary Guide Bushing Unit for (uses S&M TD25NS)
13) Door Interlock with Switches
14) Tool Package: GTF3613 5 Turning (1/2") Tool Holder 1 pc
GSC1310 Cross Milling Spindle (ER16) 5 pcs
GSE3310 3-Stations Rotary Tool Driving Device with
0 ~ 90° angle adjustment feature 1 pc
GSE4007 3 Front, 3 Back End Face Spindle (ER11) 1 pc
GDF508 2 Sleeve Holder 1 pc
MSC507 End Face Spindle use w/U155B (ER11) 2 pcs
SAU919 Sleeve Adapter on U128B and U155B 7 pcs
BDS707 ¾” Diameter Drill Sleeve (ER11) 2 pcs
HDS5406 ¾” Diameter Double End Drill Sleeve (ER11) 2 pcs
15) Centralized Lubrication System w/ Oil Level Detector (0.8 Litter Oil Capacity)
16) Air Pressurized Guide Bushing Unit
17) Leveling Bolts & Pads
18) Hand Tools (spanners, wrenches, etc.)
19) One Complete Set of Manuals
20) Test Chart
21) Parameter List
22) Oil/Air Lube Unit for Gearbox with U82R + U821R
23) Cutoff Tool Breakage Detector (A320N-Y90Z)
24) NGB Main Spindle Cap Nut Cover (A320N-U60C)

Standard Specifications of CNC System
25) 8.4" Color LCD
26) 4-Spindle Speeds Command in the Single Block
27) 8 bit B-code Function
28) Absolute/Incremental Command (Combined Use in Same Block)
29) Automatic Power Off Function
30) Background Edit Function
31) Canned Cycle for Threading
32) Chamfer/Corner Rounding Function
33) Constant Surface Speed Control ( Main & Back)
34) Continuous Threading Cycle
35) Cutting Feed rate: 1 - 8,000 mm/min
36) Cycle Time Check Function
37) Feed Command by inch/rev or inch/min (switchable by G code)
38) Help Function
39) I/O Interface for RS232C / Compact Flash Card / USB
40) Inch/Metric Conversion
41) Machine Status Memory/Display
42) Manual Feed by Pulse Generator for all Axes
43) Minimum Increment (0.00001 inch)
44) Multi-axis & Multi-line Free Control System
45) Multiple Repetitive Cycle
46) Number of Tool Offset: 40 pairs
47) Output of Miscellaneous Function during Axis Movement
48) Part Program Work Area: Program Storage Capacity 160m (64KB) tape length
49) Preparation Function
50) Program Check Function (run program forward & reverse by pulse generator)
51) Program Editing Support Function (Calculator , M&G codes list-up, Cutting condition)
52) Radius Designation on Arc
53) Rapid Feed rate: 32m/min (Y2 Axis: 8m/min)
54) Reference Point Return (Absolute Position Detector)
55) Run Hour Display
56) Self-Diagnosis Function
57) Single Point Threading
58) Spindle Speed Fluctuation Detection
59) Superimposed & Simultaneous Control System
60) Tape Code (ISO Automatic Recognition)
61) Three Dimensional Interference Check Function
62) Cut Off Tool Breakage Detector (Spindle Speed Check)
63) Tool Nose Radius Compensation
64) Main/Back Spindle Synchronization
65) C-Axis Control (Main)
66) C-Axis Control (Back)
67) Canned Cycles for Drilling (G80/83/85/89)
68) User Macro (G65-67)
69) Milling Interpolation
70) Polygon Machining Function
71) Hobbing Function
72) High Speed Synchronous Tapping
73) Synchronous Tapping Phasing Function
74) Differential Speed Tap Function option
75) Tool Life Management I
76) Tool Life Management II
77) Sub Inch Designation
78) Helical Interpolation
79) Slant Helical Interpolation
80) Circular Thread Cutting
81) Work-piece Counter Display
82) Variable Lead Thread Cutting
83) Geometric Command Function
84) 2-system simultaneous thread 1,2
85) Sub-Program Running in External Memory
86) Network I/O Function

Machine Specifications

Maximum Machining Diameter .78" (20mm) Number of Mountable Tools
Maximum Machining Length 7.87" (200mm)/chucking Gang Tool Post (turning) 5
Main Spindle Speed 200 ~ 10,000 Gang Tool Post (live) 7 Modular Stations
Rotary Tool Spindle Speed Opposite Tool Post (live & stationary) 3 Modular Stations +
Gang Tool Post 200 ~ 9,000 rpm 3 Stationary
Opposite Tool Post 200 ~ 7,500 rpm Back Tool Post (live & stationary) 4 Modular Stations +
Back Tool Post 200 ~ 7,500 rpm 4 Stationary
Back Spindle Max. Diameter .78" (20mm)
Back spindle Front Ejection Max. Length 3.2" (80mm) Tooling Size
Back Spindle Speed 200 ~ 10,000 rpm Turning Tools ½" Sq.
Rapid Traverse Rate 32 m/min I.D. Sleeves ¾" Dia.
Input Power 7.3kVA
Center Height 41.33" (1,050mm)
Weight 5,300 lbs (2,400 kgs) Collets / Bushings
Motors Main Spindle Collet TF 25
Main Spindle 3 / 5 hp Back Spindle Collet TF 25
Back Spindle 2 / 3 hp Guide Bushing TD 25NS
Rotary Tool 3 hp Rotary Tool Collet ER16 / ER11
Coolant 0.5 hp Chuck Sleeve Collet ER16 / ER11
