SWISTEK AB42 HYBRID CNC SWISS NEW 2012

Description

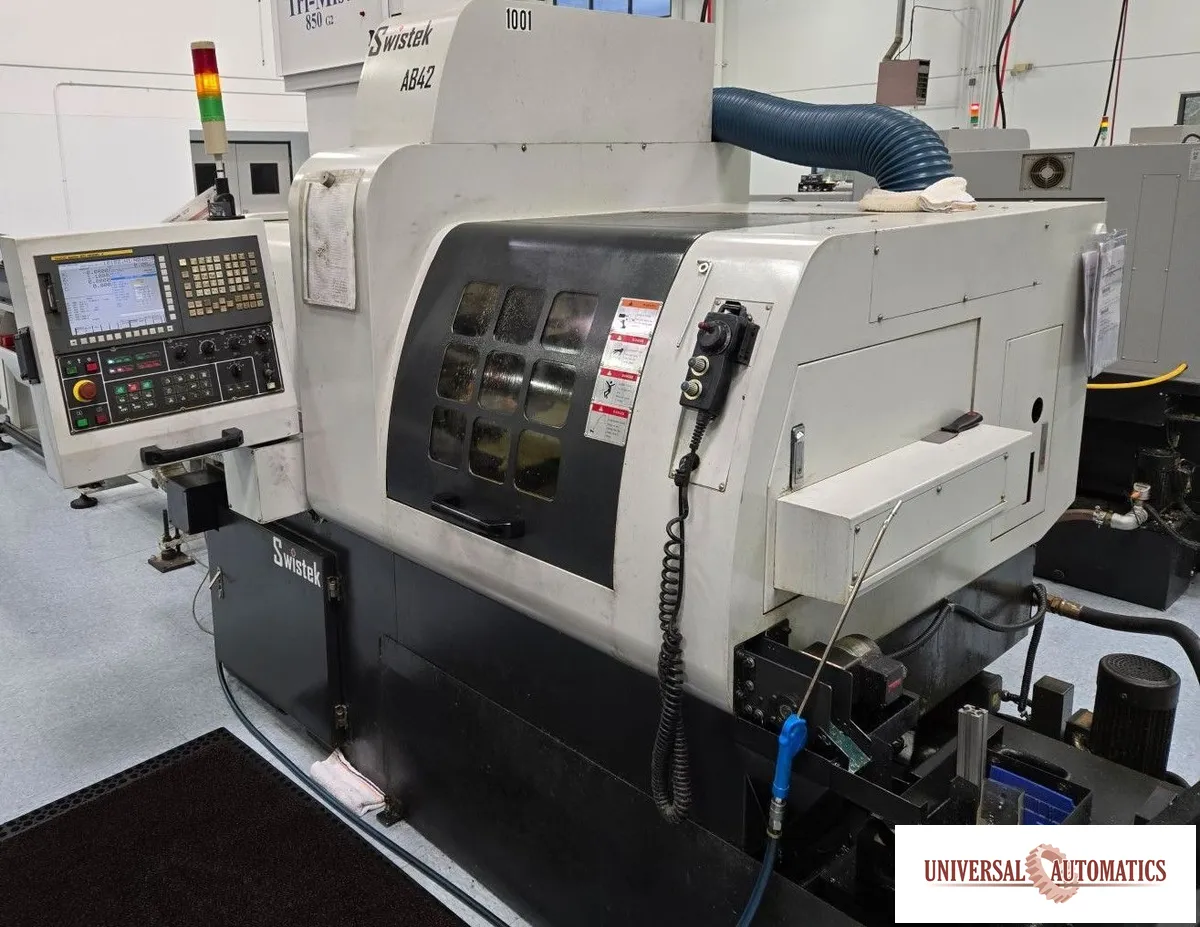

Swistek AB42 Hybrid 7 Axis CNC Swiss Type Lathe

Capacity with Rotary Guide Bushing 38mm
Capacity without Guide Bushing 42mm with Chucker Option
No. of Simultaneous Controllable Axis: 7
Independent Subspindle
Rapid Traverse Rate 1,260ipm
Simultaneous 7-Axis
Turning Tools 6
Live Tools Up to 14
Total number of tools Up to 30
Full C-Axis Main and Subspindle
Integrated Main/Sub Spindle Motors 10hp
Fanuc 32i Control
Iemca Boss 551/E Bar Feed
4-Port High Pressure Coolant Systems
Rotating Part Conveyor
Chip Conveyor
Temperature Controlled Spindle
All Available Tooling And Manuals
To Include Fire Suppressors
Foot Print:
Machine without Chip 9' long
Machine with chip 12'2"
Machine with chip and barfeed 27'9"
Barfeed: 15' 7"
Overall with of machine 5'5"
Chiller is 1.5" x 1.5"
Total floor print with all accessories: 27'9" x 7' wide
