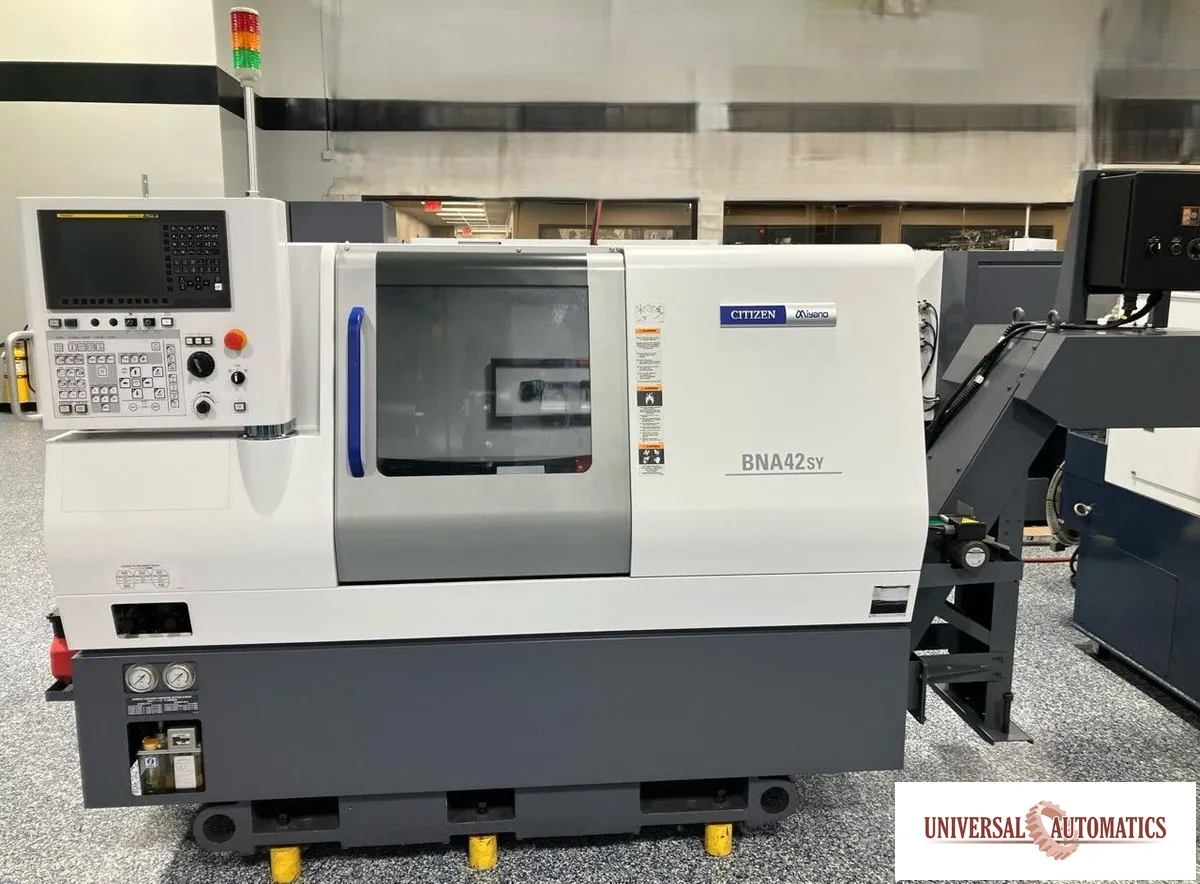

(1) MIYANO BNA-42SY5 CNC Turning Center (used) Y-Axis Turret / Edge Rebel 65 / Live Tools
Have one to sell?
ConditionUsed
1 available
6-CUTTING AXES X, Z, Y, B, C1, C2 CNC SUPER
TURNING CENTER WITH EC SPECIFICATION
• TWO SPINDLES
• ONE TURRET WITH Y AXIS
• 16-Nm TWELVE LIVE TOOL STATIONS
The BNA-42SY5 includes the new more powerful Fanuc 0i-TF Plus control that comes standard with a multitude of CNC features that were not available on previous generations of the control.
Machine Specifications
Maximum Machining Dia Bar Work 1 5/8" Number of mountable Tools
Standard Machining Length 3.937" Turret Stations 12
Main Spindle Speed 6,000 rpm Turning/Drilling 12
Back Spindle Speed 5,000 rpm Revolving Tool Stations 12
Back Spindle Max Collet Dia 1-5/8" Tooling Size
Revolving Tool Spindle Speed 5,000 rpm Turning tools 3/4" Shank
Rapid Traverse Rate I.D. Sleeves 1" Dia.
X1 axis 20m/min
Z1 axis 20m/min Collets
Z2 axis 20m/min
Y1 axis 12m/min Main Spindle Collet DIN173E (B42)
Motors Back Spindle Collet DIN173E (B42)
Main Spindle 10 hp / 7.3 hp Spindle Nose
Back Spindle 7.3 hp / 5.0 hp Main Flat
Live Tool 3.7 hp / 1.3 hp Back Flat
Machine Weight 8,047 lbs.
FANUC 0i-TF Plus
Chip Conveyor
Part Conveyor
Edge Rebel V-65 Servo Magazine Bar Loader w/spindle liner
(3) OD/Axial drilling/milling ER16 live tool holders
Standard tooling as when new
Tool kit
Manuals
