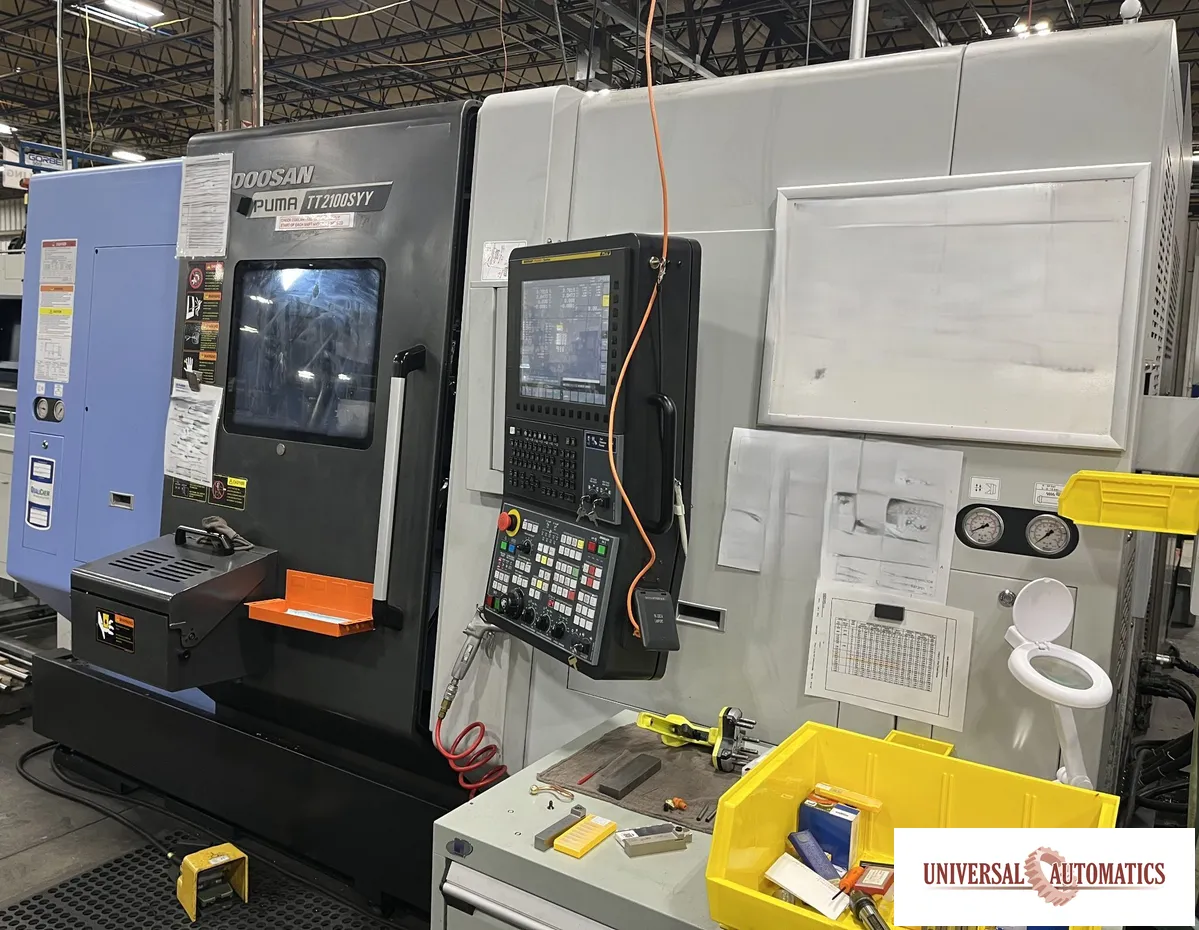

2022 DOOSAN PUMA TT-2100SYY Twin Turret / Twin Spindle / Y-Axis CNC Turning Center (used)
Have one to sell?
ConditionUsed
1 available
(1) DOOSAN Puma TT2100SYY CNC Turning Center (used) New 2022 w/two turrets, Y axis on BOTH, twin spindle, chip conv, Bar feed interface, ONLY 1,100 cut time hours.
High Productivity Twin-spindle Twin-turret with Y-axis Turning Center
The PUMA TT is a horizontal turning center designed and built for the fast and mass production of high precision automotive or medical parts. Featuring live tooling, a Y-axis and a built-in sub-spindle TT machines deliver an impressive simultaneous machining solution.
GENERAL SPECIFICATIONS PER BROCHURE - TO BE VERIFIED BY BUYER:
Turret Configuration:: 24 + 24 (48 Total Stations) (Upper + Lower)
C-Axis Indexing:: 360° in .001° increments
Sub Spindle Bearing Diameter:: 3.0"
Sub Spindle Nose:: A2 #6
Sub Spindle Torque:: 153.5 Ft-Lbs
Sub Spindle Motor:: 29.5 HP / 20.1 HP (30 min / Cont)
Sub Spindle Speed:: 5000 RPM
Maximum Rotary Tool Speed:: 5,000 RPM
Turret Indexing Time:: 0.15 Seconds
Max. tool size:: 1.3"
OD tool size:: 0.8" x 0.8"
Chuck Size:: 8"
Max Swing:: 9.1"
Max Turning Length:: 9.1"
Max Turning Diameter:: 9.1"
Rapid Rate X Axis:: 787 IPM
Rapid Rate Z Axis:: 944 IPM
Z Axis Travel:: 31.5"
X Axis Travel:: 6.5"
Spindle Motor:: 30 HP
Spindle Speed:: 5,000 PRM
Bar Capacity:: 2.625"
The left and right spindles and the upper and lower turrets are able to operate independently to double productivity.
Various sizes from Ф42mm~Ф81mm (bar capacity).
Upper and lower turrets with Y axis. (PUMA TT1300/2100SYY)
Patrol Light
Tool Setter
Parts Catcher
Chip Conveyor
Misc turret tool holders - live and stationary as pictured
Manuals, tool kit, keys
