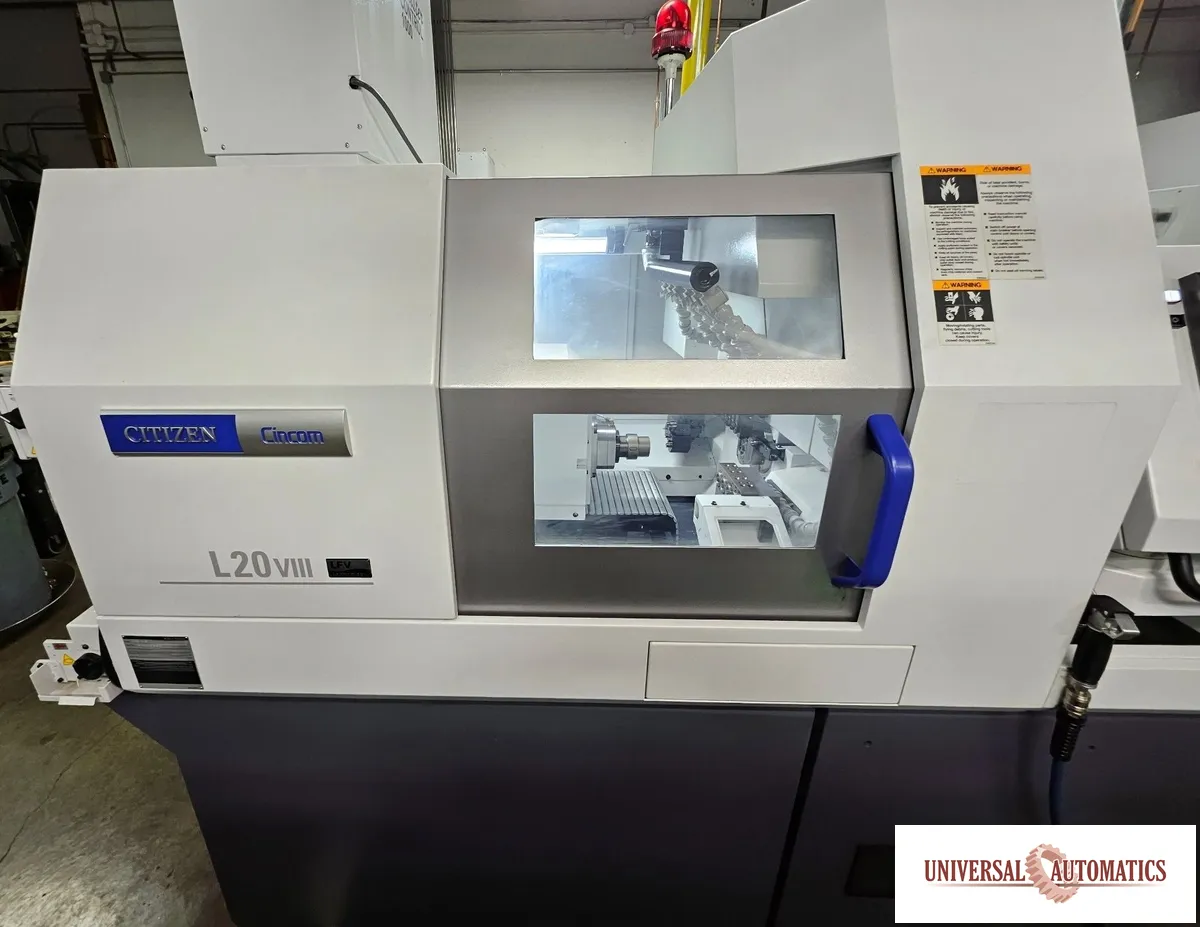

CITIZEN L20E VIII (2M8) Swiss Type CNC Lathe (used) New 7/2022 w/LFV ON!

1) Simultaneous Axes control
2) AC Servo Axes Control
3) Main Spindle Speed 200 ~ 10,000 rpm 5-digit stepless command
4) Back Spindle Speed 200 ~ 10,000 rpm 4-digit stepless command
5) Live Tool Spindle Speed
Gang Tool Post: 200 ~ 9,000 rpm 4-digit stepless command
Back Tool Post: 200 ~ 7,500 rpm 4-digit stepless command
6) Rotary Tools Drive System
7-Stations on Gang Tool Post (L220EU36B + GSE3310)
4-Stations on Back Tool Post (L220EU153B)
7) Main Spindle Collet Chuck Unit (S&M TF25)
8) Back Spindle Collet Chuck Unit (S&M TF25)
9) Work-piece Separator (max part length = 80mm)
10) Cutting Oil Tank with Oil Level Detector (40 Gal Oil capacity)
11) Back Spindle Air Blow Unit
12) Synchronous Type Rotary Guide Bushing Unit for (uses S&M TD25NS)
13) Door Interlock with Switches
14) Tool Package:
GTF3613 5 Turning (1/2") Tool Holder 1 pc
GSC1310 Cross Milling Spindle (ER16) 5 pcs
GSE3310 3-Stations Rotary Tool Driving Device with
0 ~ 90° angle adjustment feature 1 pc
GSE4007 3 Front, 3 Back End Face Spindle (ER11) 1 pc
L220EU121B 3 Front (3/4") Drill Sleeve Holder 1 pc
GDF508 2 Sleeve Holder 1 pc
MSC507 End Face Spindle (ER11) 2 pcs
SAU819 Sleeve Adapter on U153B 4 pcs
HDS5406 ¾” Diameter Double End Drill Sleeve (ER11) 2 pcs
LDS110 ¾” Diameter Drill Sleeve 145mm length (ER16) 1 pc
BDS707 ¾” Diameter Drill Sleeve (ER11) 2 pcs
VDS506 ¾" Diameter Drill Sleeve (ER11) 2 pcs
15) Centralized Lubrication System w/ Oil Level Detector (0.8 Litter Oil Capacity)
16) Air Pressurized Guide Bushing Unit
17) Leveling Bolts & Pads
18) Hand Tools (spanners, wrenches, etc.)
19) One Complete Set of Manuals
20) Test Chart
21) Parameter List
22) Oil/Air Lube Unit for Gearbox with U82R + U821R
23) Cutoff Tool Breakage Detector (A320N-Y90Z)
24) NGB Main Spindle Cap Nut Cover (A320N-U60C)
25) A320N-U10C Spindle Liner Holding Parts
26) A320N-U123C Spindle Liner with 23mm ID
Standard Specifications of CNC System
27) 8.4" Color LCD
28) 4-Spindle Speeds Command in the Single Block
29) 8 bit B-code Function
30) Absolute/Incremental Command (Combined Use in Same Block)
31) Automatic Power Off Function
32) Background Edit Function
33) Canned Cycle for Threading
34) Chamfer/Corner Rounding Function
35) Constant Surface Speed Control (Main & Back)
36) Continuous Threading Cycle
37) Cutting Feed rate: 1 - 8,000 mm/min
38) Cycle Time Check Function
39) Feed Command by inch/rev or inch/min (switchable by G code)
40) Help Function
41) I/O Interface for RS232C / Compact Flash Card / USB
42) Inch/Metric Conversion
43) Machine Status Memory/Display
44) Manual Feed by Pulse Generator for all Axes
45) Minimum Increment (0.00001 inch)
46) Multi-axis & Multi-line Free Control System
47) Multiple Repetitive Cycle
48) Number of Tool Offset: 40 pairs
49) Output of Miscellaneous Function during Axis Movement
50) Part Program Work Area: Program Storage Capacity 160m (64KB) tape length
51) Preparation Function
52) Program Check Function (run program forward & reverse by pulse generator)
53) Program Editing Support Function (Calculator , M&G codes list-up, Cutting condition)
54) Radius Designation on Arc
55) Rapid Feed rate: 32m/min
56) Reference Point Return (Absolute Position Detector)
57) Run Hour Display
58) Self-Diagnosis Function
59) Single Point Threading
60) Spindle Speed Fluctuation Detection
61) Superimposed & Simultaneous Control System
62) Tape Code (ISO Automatic Recognition)
63) Three Dimensional Interference Check Function
64) Cut Off Tool Breakage Detector (Spindle Speed Check)
65) Tool Nose Radius Compensation
66) Main/Back Spindle Synchronization
67) C-Axis Control (Main)
68) C-Axis Control (Back)
69) Canned Cycles for Drilling (G80/83/85/89)
70) User Macro (G65-67)
71) Milling Interpolation
72) Polygon Turning Function
