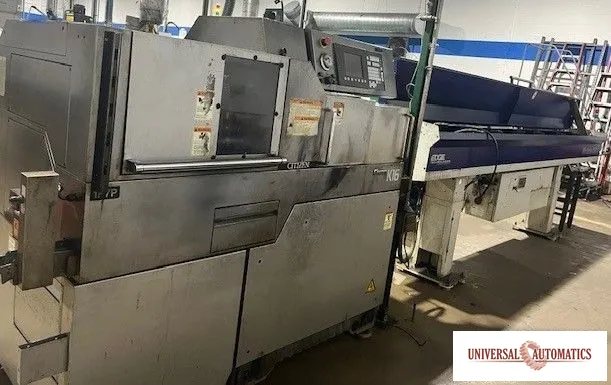

CITIZEN K16 VII (1F7) Swiss Type CNC Lathe (used) New 2005 w/Edge Minuteman 320

The high end K16 Type VII with X2-axis control module allows
simultaneous front-back machining. The cycle time can be reduced
by full use of streamline control.
Turning tools: 6 (□12) or 7 (□10)
Rotary gang tools: 4
Front drilling tools: 4
Back drilling tools: 4

Front spindle indexing function (1°)
This function indexes the front spindle at 1°.

Back spindle indexing function (1°)
This function indexes the back spindle at 1°.

Corner chamfering/rounding function
This function simplifi es the specifi cation of
corner chamfering and corner rounding by
using the “C” and “R” commands.

Nose R compensation function
This function makes compensation for the
radius of a tool nose by using the G code
command.

Tool spindle rigid tapping
Enables rigid tapping with the tool spindle
by synchronizing revolution and feed.

Main spindle rigid tapping
Enables rigid tapping with the main spindle
by synchronizing revolution and feed.

Back spindle rigid tapping
Enables rigid tapping with the back spindle
by synchronizing revolution and feed.

Spindle synchronization control
function
This function synchronizes the front spindle
with the back spindle.

Front spindle C axis/Back spindle C axis
indexing function
This function controls the profile positioning
of the spindle at an arbitrary angle by using
the spindle motor as the C axis control
servo motor. The spindle holds the position
without any mechanical lock.*

User Macro
Enables the use of macro programs.

Multiple repetitive cycles for turning
This function enables the use of several
types of canned cycles.

Canned drilling cycle
Enables use of canned cycles such as deep
hole drilling cycles and boring cycles.

Milling interpolation function
This function performs contour control
toward the end face of a workpiece by using
a linear axis and rotary axis (C axis).

Sub-micron command
This command specifi es the least input
increment with 0.0001 mm.

Tool life management I
This function stops the machine when a
tool has reached its life, and reports the
tool number.

Tool life management II
This function automatically selects a spare
tool when a tool has reached its life.

Hobbing/polygon machining function
This function enables hob machining (gear
cutting) and polygon machining (cutting
shape consisting of multiple sides) with a
gang tool spindle device.

Helical interpolation function
This function enables helical interpolation
(instruction to other axis synchronizing with
the circular interpolation) with a gang tool
spindle device.
