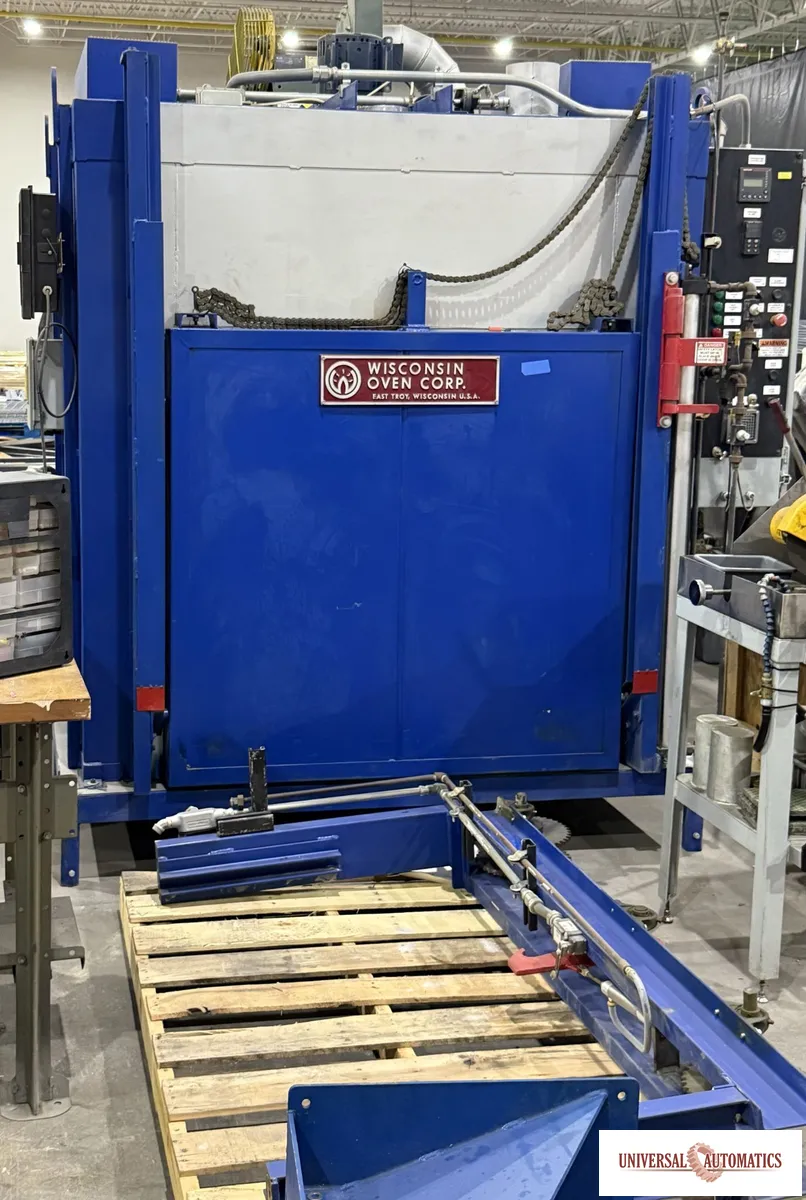

WISCONSIN OVEN EWN-44-4E Walk-In Batch Oven (Electric) New 2014

Enhanced Duty Walk-In Oven (EWN) line of industrial walk-in ovens. The EWN is manufactured with all the same quality features as other Wisconsin Oven batch ovens, but includes several of our most popular options added into the base model. The EWN is available in gas-fired and electrically heated versions

The EWN is ideal for finishing and curing applications such as powder coating, wet paint drying, composite curing, preheating, and more. It is also well-suited for metallurgical processes such as aluminum aging and steel tempering, due to its high performance and reliability.

Heavy duty construction and quality components
High volume airflow provides excellent uniformity and heating rates
Direct drive recirculation blowers avoid drive belts that require inspection and replacement
Roof-mounted blowers conserve valuable floor space

MANUFACTURER: WISCONSIN

TYPE: ELECTRIC WALK IN OVEN

SIZE I.D.: 4’WIDE X 4’LONG X 4’HIGH

SIZE O.D.:

MODEL: EWN-44-4E

MAXIMUM TEMP.: 500 F

ELECTRICS: 480 VOLTS, 48 KW, 3 PHASE

CONTROLS: WATLOW F4 DIGITAL TEMPERATURE CONTROL, WATLOW EZ-ZONE DIGITAL
OVER TEMPERATURE CONTROL AND PARTLOW MRC 5000 ROUND CHART RECORDER.

GENERAL: AIR OPERATED VERTICAL LIFT FRONT DOOR. HEATING ELEMENTS AND
CIRCULATING FAN ARE MOUNTED ABOVE WORK ARE IN A PROTECTED CHAMBER.
HEATED AIR ENTERS WORK AREA VIA DUCT WORK ON BOTH WALLS AND RETURNS
THROUGH THE ROOF CREATING A COMBINATION HORIZONTAL/VERTICAL AIR
FLOW. EQUIPPED WITH A ROOF MOUNTED POWER EXHAUST.
MANUFACTURED 2014.
