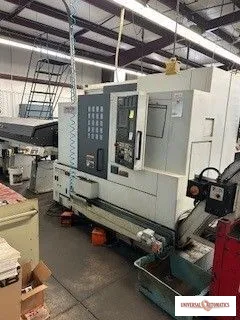

MORI SEIKI NL-2000SY CNC Turning Center (used) New 2006 with FMB Turbo 5-65

The 2006 Mori Seiki NL2000SY is a model of CNC turning and milling center known for its high precision and versatility in machining complex parts. This machine is widely used in industries such as automotive, aerospace, and medical devices.
Key Specifications (Typical Configuration)
Specifics can vary based on individual machine configurations and optional accessories, but general specifications for the NL2000SY model include:
Machine Type: CNC Lathe with sub-spindle and live tooling (Y-axis capabilities).
Control: MSX-850 or Mapps V CNC control.
Maximum Turning Diameter: 366 mm (14.4 inches).
Maximum Turning Length: 510 mm (20 inches).
Bar Capacity: 65 mm (2.5 inches).
Spindle Speed: Up to 5000 RPM (main spindle) and 6000 RPM (sub-spindle).
Turret: 12-station BMT turret, all positions capable of using live (driven) tools.
Axis Travel:
X-axis: 260 mm (10.2 inches).
Z-axis: 590 mm (23.2 inches).
Y-axis: 100 mm (±50 mm or ±2.0 inches).

The 2006 Mori Seiki NL2000SY CNC lathe is typically equipped with the Mori Seiki MSX-850 III or Mapps V control system. This is a customized, user-friendly interface built on a Fanuc core control.

Key characteristics of the control system include:
Fanuc Foundation: The underlying control logic and G-code commands are based on standard Fanuc cycles and macros, meaning that general Fanuc programming knowledge is applicable.
Mapps Interface: The control features the Mori Seiki Advanced Programming Production System (Mapps) interface, which offers enhanced features over standard Fanuc controls.
User-Friendly Features: The Mapps interface includes tools like side-by-side program comparison, Windows-style selection and copying, advanced simulation graphics, and features for tool life management and load monitoring.
Multi-axis Control: The NL2000SY model is a complex turn-mill center with a main spindle, sub-spindle, Y-axis, and C-axis capabilities, all managed through this single, integrated control system.

Common Applications
The combination of a main spindle, sub-spindle, and Y-axis live tooling allows the machine to perform complex, multi-sided machining operations without manual re-fixturing. This makes it suitable for single-setup production of intricate components.
