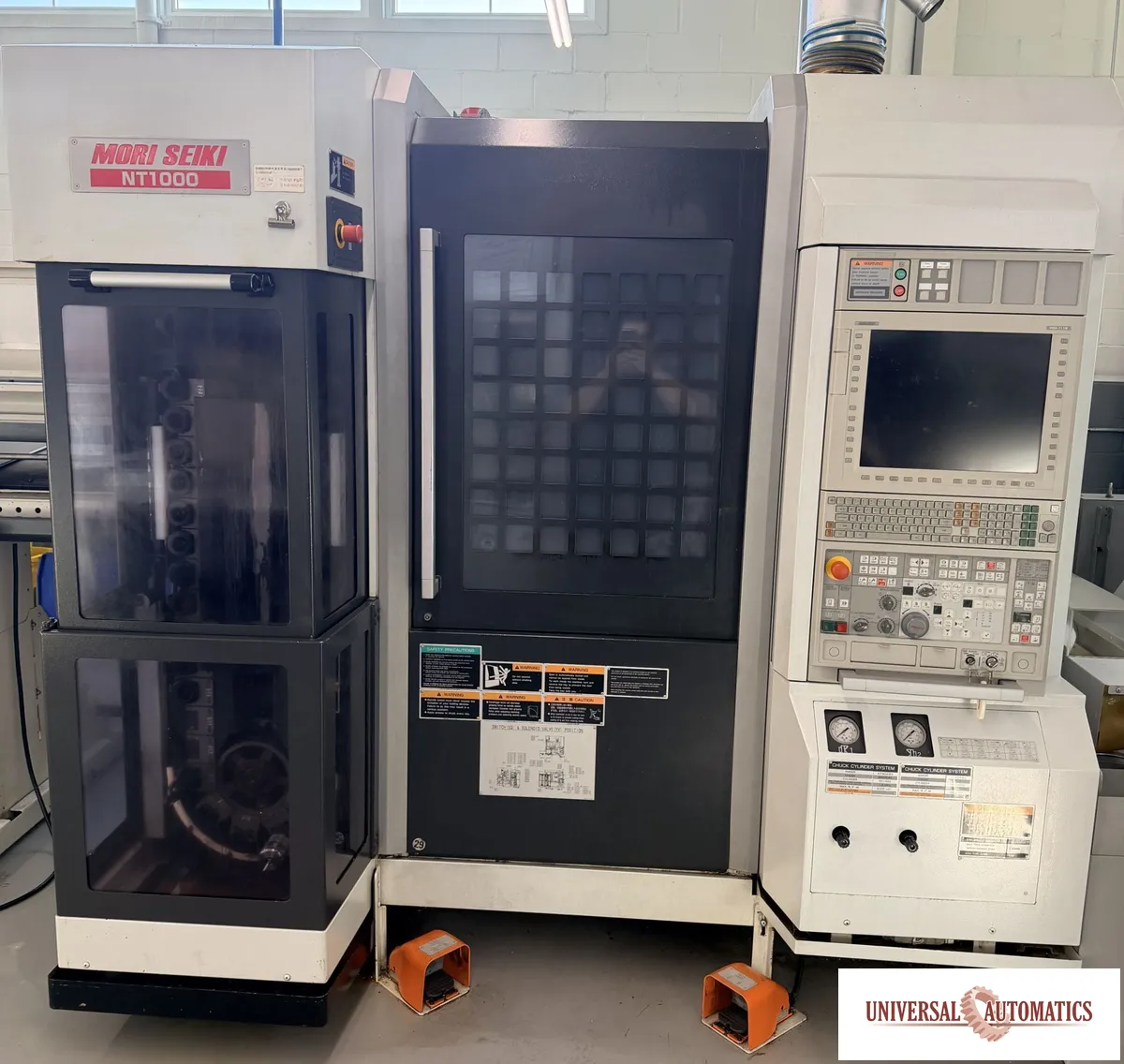

MORI SEIKI NT-1000/SZ B-AXIS MILL-TURN Center (used) New 2010 w/LNS magazine bar loader!

Maximum Swing Of Work Piece: 14.5″
Swing Over Cross Slide: 14.5”, Turret 2 11.8”
Maximum Turning Length: 16.6”
X – Axis Travel: 15″
Y – Axis Travel: + / – 4.1”
Z – Axis Travel: 18.1″ + 6.1″
X – Axis Travel: TRT 2 6.1″
Z – Axis Travel: TRT 2 24″
C – Axis Travel: Main / Sub .0001 Deg.
B – Axis Min. Index Angle / Index Range: -120 – +120 DEGREE
B – Axis Spindle Speed: HSC 20,000 RPM
Tool Spindle: 12 HP
Number Of Tool For Tool Spindle: 38 ATC
Spindle Nose: No 1, No 2 A2-5 / G6 Flat Nose
Hole Through Spindle: No 1, No 2 2.4” / 2.2”
Bar Work Capacity: No. 1, No 2 2.0″/1.5”
Main Spindle Motor: 15 HP
Sub Spindle Motor :10 HP
Spindle Speeds: No 1, No 2 6000 / 1000 RPM
Rapid Traverse Rate: X, Y, Z, A 945, 945, 629, 300 IPM
Turret Configuration: 10
Turret Indexing Time: .26 Sec.
Machine Weight: 19,690 LBS.
MORI SEIKI NTX1000/SZ
5-Axis CNC Mill-Turn Center
Year: 2010
Control: FANUC FS31i-A5 (MAPPS IV)
________________________________________
GENERAL SPECIFICATIONS
• Machine Type: Multi-Tasking CNC Turning Center with B-Axis Milling Head
• Simultaneous Axis Capability: 5-Axis
• Sub-Spindle: Yes
• Lower Turret: Yes (10-Station)
• Tool Interface: Capto C5
________________________________________
CAPACITY
• Max Turning Diameter: Ø 14.5" (370 mm)
• Max Turning Length: 16.7" (424 mm)
• Bar Capacity: 2.05" (52 mm)
• Chuck Size: 8" Main & Sub
________________________________________
AXIS TRAVELS
• X-Axis: 15.0" (380 mm)
• Y-Axis: ±4.1" (±105 mm)
• Z-Axis: 31.5" (800 mm)
• B-Axis: ±120° (0.0001° Indexing)
• Lower Turret Travel: X 6.3" / Z 28.7"
________________________________________
SPINDLES
Main Spindle
• Speed: 6,000 RPM
• Spindle Bore: 2.87" (73 mm)
• Power: 15 HP (11 kW)
Sub Spindle
• Speed: 6,000 RPM
• Power: 10 HP (7.5 kW)
Milling Spindle
• Speed: 12,000 RPM
• Power: 12 HP (9 kW)
• Tool Taper: Capto C5
________________________________________
TOOLING SYSTEM
• Tool Magazine Capacity: 76 Stations
• Max Tool Diameter:
o 2.75" (70 mm) with adjacent tools
o 5.1" (130 mm) without adjacent tools
• Max Tool Length: 9.8" (250 mm)
• Max Tool Weight: 11 lbs (5 kg)
________________________________________
RAPID TRAVERSE RATES
• X / Y: 1,575 IPM (40 m/min)
• Z: 1,970 IPM (50 m/min)
________________________________________
MACHINE DIMENSIONS
• Approx Weight: 19,000 lbs (8,600 kg)
• Floor Space: Approx. 8.2' x 8.2'
• Power Requirement: Approx. 48 kVA
________________________________________
STANDARD FEATURES
• MAPPS IV Control
• Full 5-Axis Interpolation
• Sub-Spindle
• Lower Turret
• Automatic Tool Changer
• Chip Conveyor
• Coolant System
• Parts Catcher
• Foot Pedal Controls
