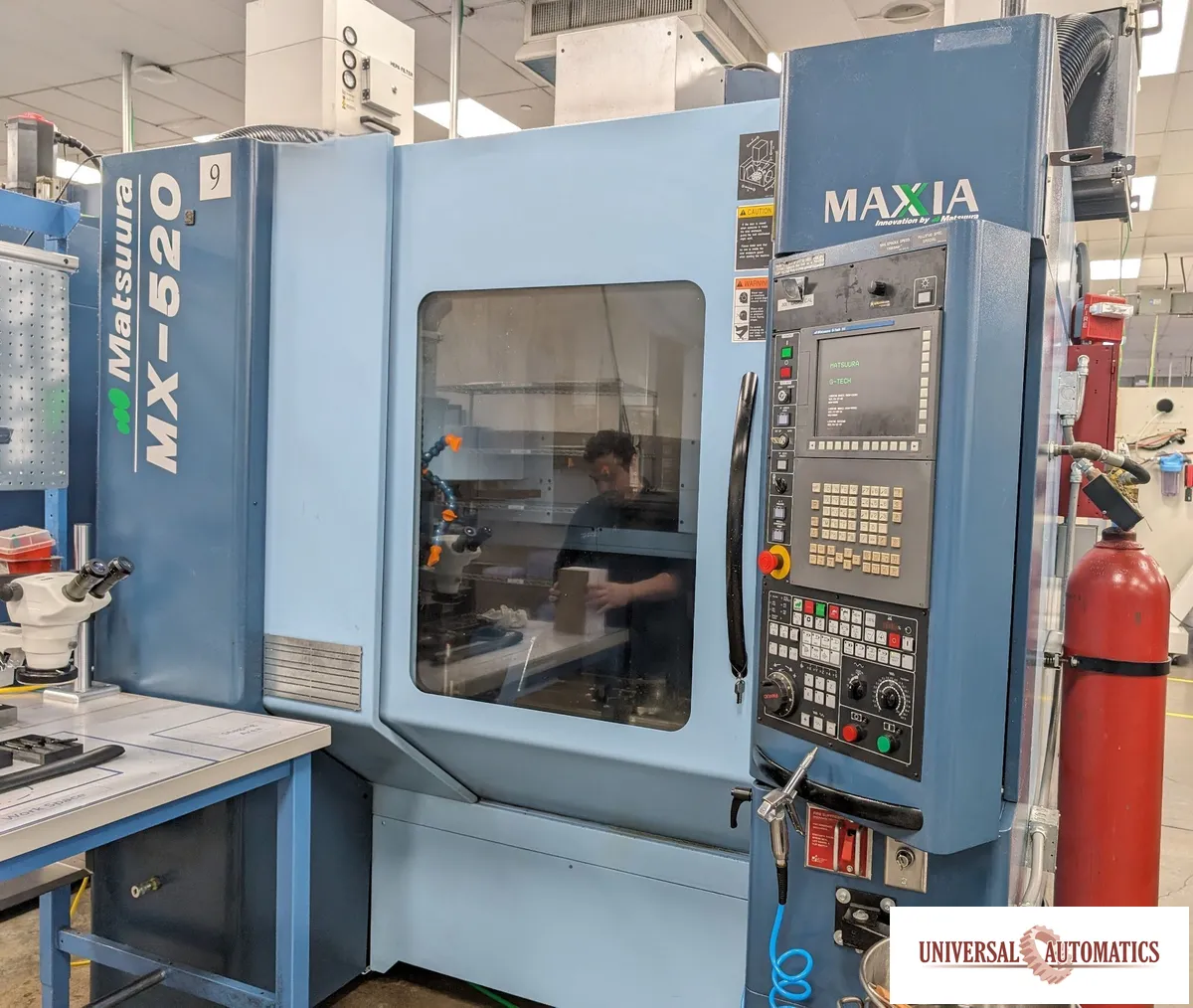

MATSUURA MX-520 5-Axis Vertical Machining Center (used) New 2013 - inspected!
Have one to sell?
ConditionUsed
1 available
MATSUURA MX-520 5-Axis Vertical Machining Center (used) New 2013 - Matsuura G-Tech, Fanuc 31i Control, ATC: 60 Station, Scale Feedback A/C Axis, Coolant Through Spindle, Spiral & Lift-Up Chip Conveyor, Air Blow for Chip Removal, Probe System - RAN OIL!
SPINDLE
Speed: 20,000RPM
Taper: CAT40
Power 15HP
TABLE
15HP
Working Surface: 19.68” DIAMETER
Load Capacity: 440 Lbs.
Max Work Size: 20.5” x H13.77”
Travels: X-24.8”, Y-22”, Z-20”
A-Axis: -125°~+10°
C-Axis: 360°
Feedrate: (X/Y/Z) = 1575 IPM
Feedrate: A = 17 RPM, C = 33 RPM
Dimensions: (WxDxH) 136.2” x 235.5” x 116.14”
Weight 19,500 Lbs.
Matsuura G-Tech, Fanuc 31i Control
ATC: 60 Station
Scale Feedback A/C Axis
Coolant Through Spindle
Spiral & Lift-Up Chip Conveyor
Air Blow for Chip Removal
Probe System
