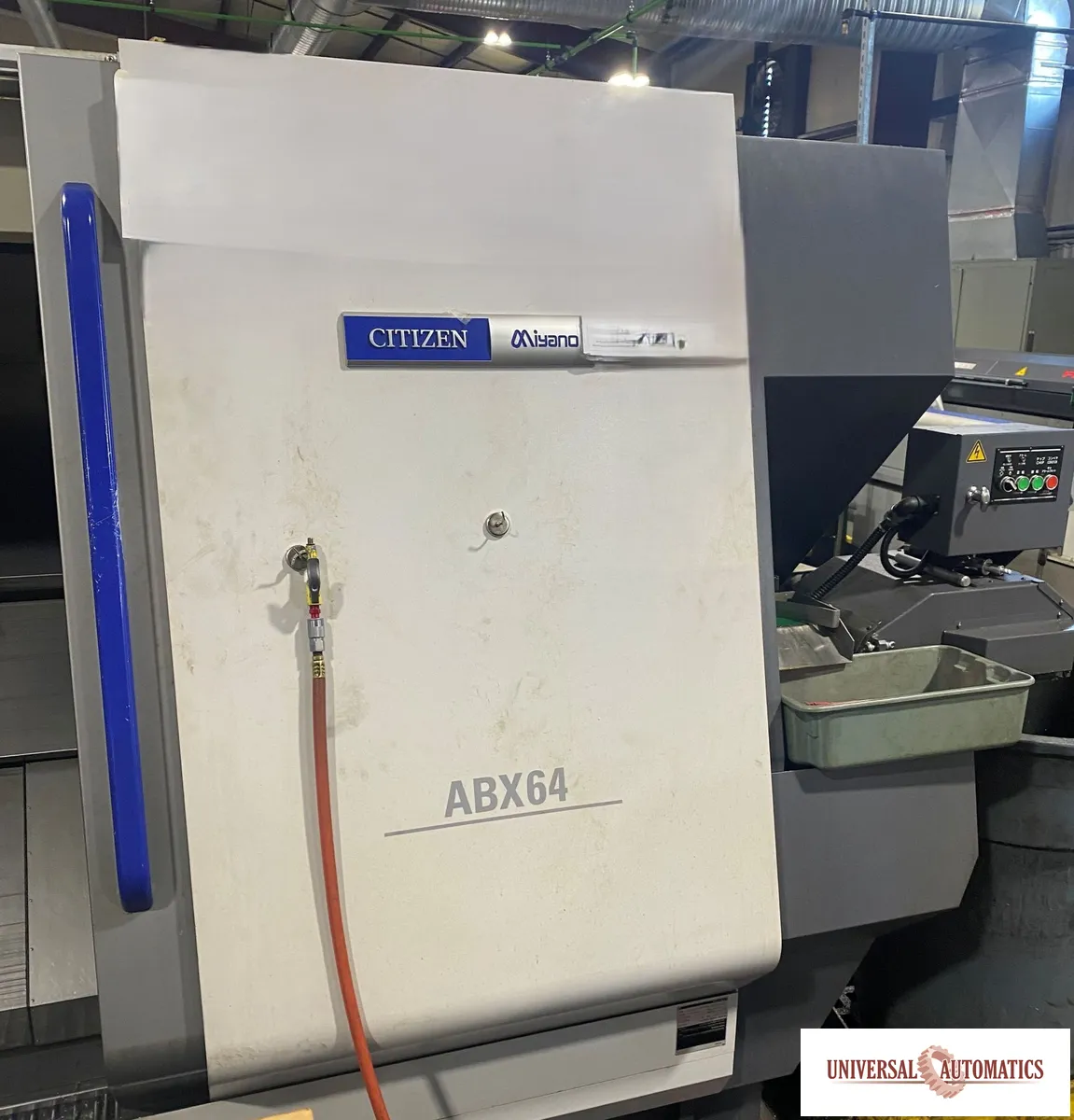

MIYANO ABX-64SYY CNC Turning Center (used) New 2019 - twin Y-axis turrets / twin spindle

9-CUTTING AXES (X1, Z1, Y1, X2, Z2, Y2, Zs, C1, C2)
CNC SUPER TURNING CENTER WITH

• TWO SPINDLES
• TWO TURRETS
• TWO Y-AXIS SLIDE
• 40-Nm TWENTY-FOUR REVOLVING TOOL STATIONS

Super ABX Features

More powerful Live Tool capability.
The 40 Nm Tool with 6.0HP Motor allows for increased productivity.

2.5" Diameter Bar Capacity
5" Work Length (on standard parts catcher)

I. Including:
1) 20 HP AC Left (Main) Spindle Drive Motor
2) 10 HP AC Right (Back) Spindle Drive Motor
3) 2.5” Dia. Left (Main) Spindle Chuck System for H-S26 Collet Pads
4) 2” Dia. Right (Back) Spindle Chuck System for H-S22 Collet Pads (Spindle Through Bore)
5) Spindle Disk Brake on Left (Main) Spindle
6) Spindle Disk Brake on Right (Back) Spindle
7) Air Blow on Left (Main) Spindle
8) Air Blow on Right (Back) Spindle (Outer and Inner)
9) Work Ejector (Cylinder Type)
10) 2 Sets of 12 Stations Turret (HD1 & HD2) with Y-Axis
11) 6.0 HP Revolving Tool Motor
12) Filler Tube Assembly
13) Coolant System with Level Switch (106 Gallon Capacity Coolant Tank)
14) High Pressure Coolant System (2-Turrets and Right Spindle)
15) Cut-Off Confirmation
16) Door Interlock
17) Automatic Lubrication System
18) Programmable Parts Catcher (Servo Type)
19) Parts Conveyor
20) Machine Light
21) Signal Tower, 3 Steps
22) Tool Setter
23) Chip Conveyor (Hinge Type: High)
24) Bar Feed Interface (Harting 24 Pin Type Connector)
