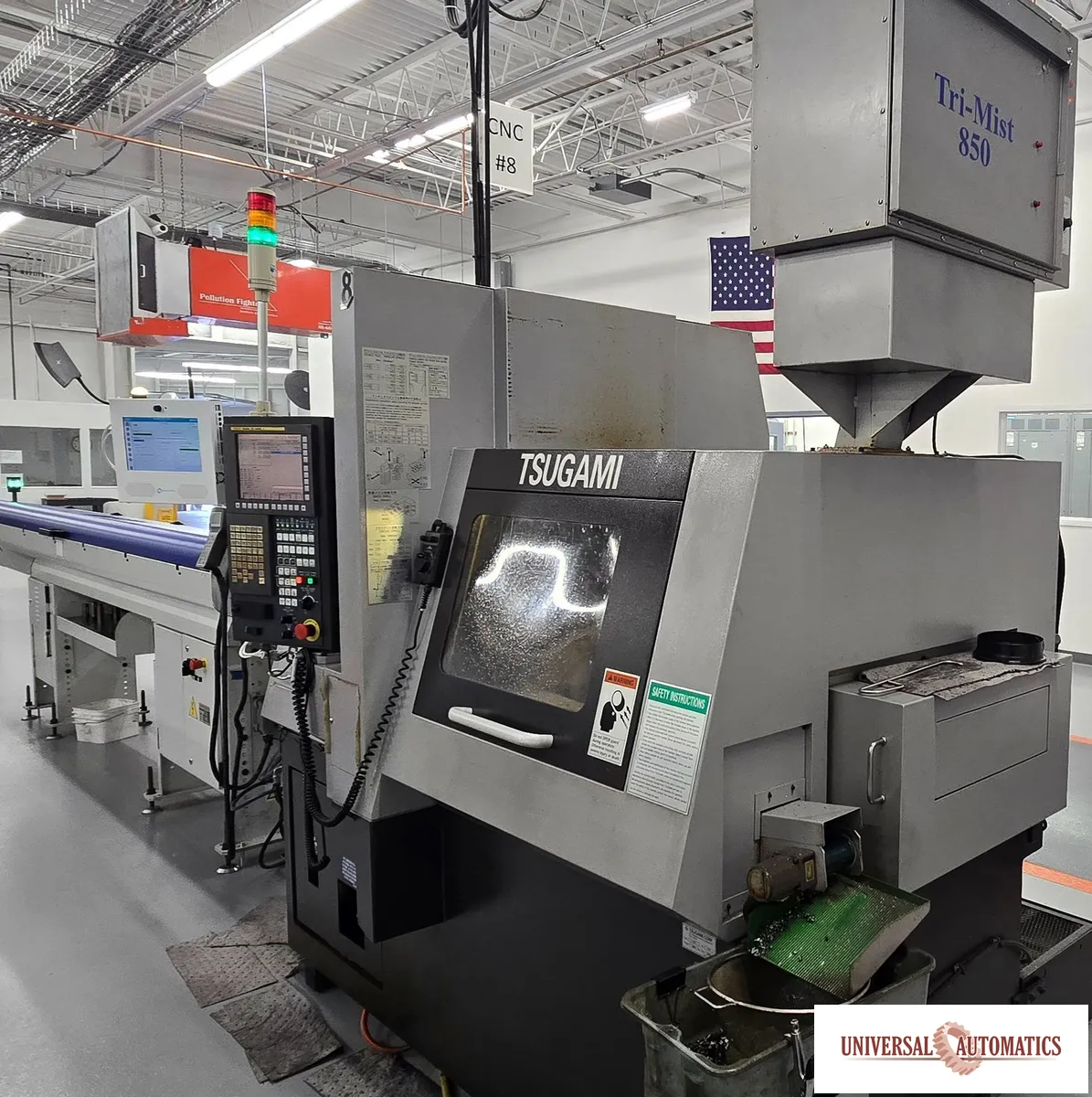

2008 TSUGAMI SS32 Swiss Type CNC Lathe - Y-axis sub spindle, ran oil!

PRECISION TSUGAMI - CNC Precision Automatic Lathe
SUPER SWISSTURN SS32
Opposed gang tool combination machine
Modular tool zone effectively handles complex parts
Ideal for short run or extended production.

Simultaneous operation of main and sub spindle.
(Y-axis back tool post with cross tool spindle shortens drastically the cycle time)
■ Back slitting ■Vertical traverse milling with back endmill
■ Back cross drilling and cross tapping ■ Deburring of front cross drilled holes

Modular Tooling A combination of rotary tools, internal tool holders, and turning tool holders - • Cross rotary tools • Front rotary tools • Fixed drill holders (double/single) • Turning holder

Highly Efficient Machining
■Turning capability equivalent to the "double spindle"
■ Cartridge type thick tool spindle provides powerful
combined machining

Wide Tooling Zone
■ Easy tooling setup
■ Easy front discharge of even long workpieces
■Easy chip disposal

Long Stroke Rotary Guide Bushing
(optional)
■ SS32: 320 mm
■ Guide bushing adapter: Front installation
■ Guide bushing clearance: Front adjustment

Simultaneous Machining
Shortens Cycle Time
■ Back spindle and dedicated back tool post
enable a front and back complete overlapped machining

Convertible Machine
■With optional kit, the SS32 can be converted to
run in "chucker mode." Ideal for short complex
parts or unground bar stock.
Extended Unmanned Operation
■ Large capacity chip pan in wide tooling zone
enables a long time unmanned operation.
