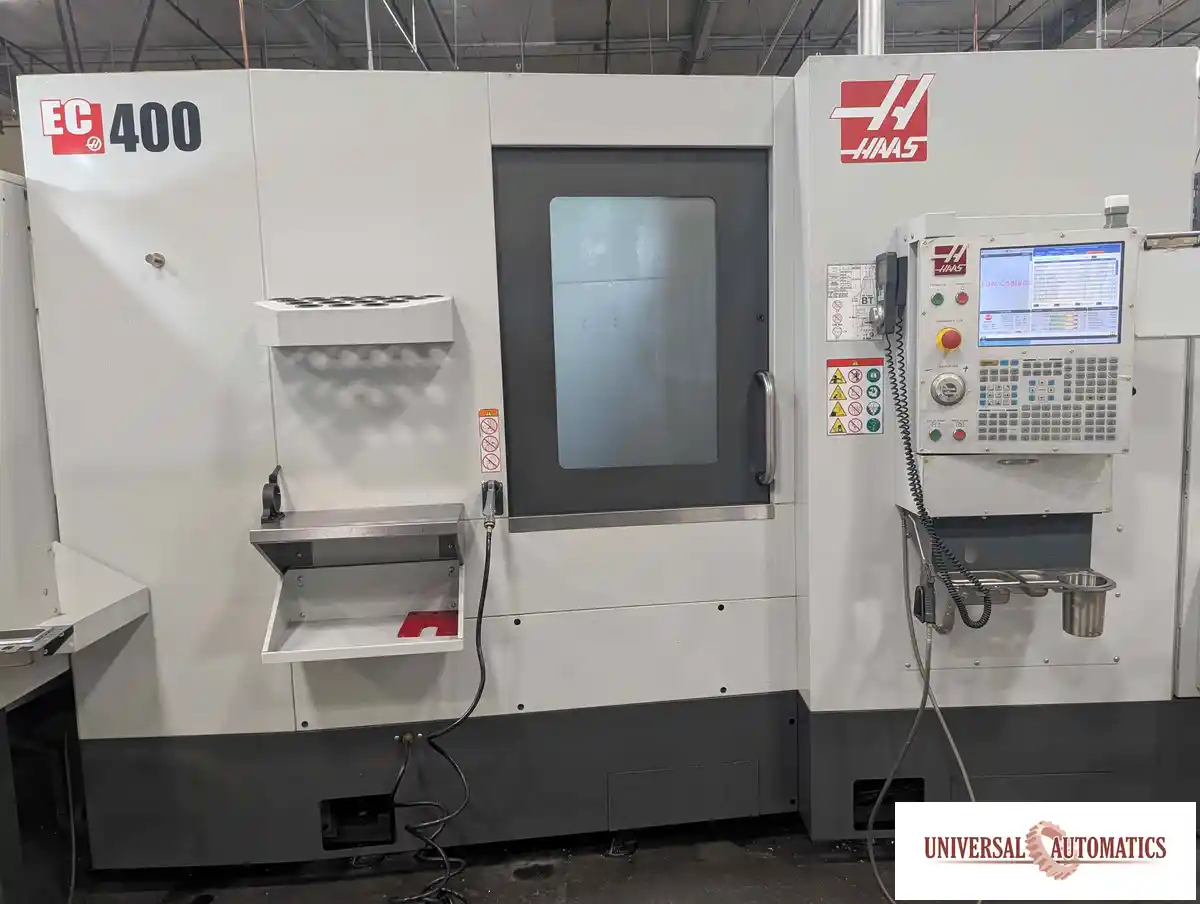

2019 HAAS EC-400PP-C CNC HORIZONTAL MACHINING CELL WITH 6 PALLET POOL
Have one to sell?
ConditionUsed
1 available
2019 HAAS EC-400PP-C CNC HORIZONTAL MACHINING CELL WITH 6 PALLET POOL - available immediately. Equipped with - HAAS NEXGEN CONTROL WITH HAAS CONNECT, WIRELESS NETWORKING, PROBING, HENNIG CHIP CONVEYOR, 12000 RPM SPINDLE / BT40, HIGH PRESSURE COOLANT, THROUGH SPINDLE COOLANT, 100 ATC, HIGH INTENSTY LIGHTING, REMOTE JOG W/ SCREEN, 1 GB MEMORY, TO INCLUDE QUANTITIES OF BT40 TOOLING.
X AXIS TRAVEL 22”
Y AXIS TRAVEL 25”
Z AXIS TRAVEL 22”
PALLET SIZE 15.75”
SPINDLE MOTOR 30HP
SPINDLE SPEED RANGE 12,000RPM
SPINDLE TAPER BT-40
RAPID TRAVERSE(X,Y,Z) 1,400 IPM
TOOL STORAGE CAPACITY 100 ATC
AUTO PALLET CHANGER CAP. 6+1
HAAS NEXGEN CONTROL WITH HAAS CONNECT
WIRELESS NETWORKING
PROBING
HENNIG CHIP CONVEYOR
12000 RPM SPINDLE / BT40
HIGH PRESSURE COOLANT
THROUGH SPINDLE COOLANT
100 ATC
HIGH INTENSTY LIGHTING
REMOTE JOG W/ SCREEN
1 GB MEMORY
TO INCLUDE QUANTITIES OF BT40 TOOLING
2019 HAAS EC-400PP-C CNC HORIZONTAL MACHINING CELL WITH 6 PALLET POOL - available immediately. Equipped with - HAAS NEXGEN CONTROL WITH HAAS CONNECT, WIRELESS NETWORKING, PROBING, HENNIG CHIP CONVEYOR, 12000 RPM SPINDLE / BT40, HIGH PRESSURE COOLANT, THROUGH SPINDLE COOLANT, 100 ATC, HIGH INTENSTY LIGHTING, REMOTE JOG W/ SCREEN, 1 GB MEMORY, TO INCLUDE QUANTITIES OF BT40 TOOLING.
Imperial
| X | 22" |
| Y | 25" |
| Z | 22" |
| Power | 30 hp |
| RPM | 12,000 RPM |
| # ATC | 100 |
| Taper | 40 |
| Pallet-W | 15.75" |
| Pallet-L | 15.75" |
| # Axis | 4 |
| Control | CNC (HAAS NEXGEN CONTROL WITH HAAS CONNECT) |
X AXIS TRAVEL 22”
Y AXIS TRAVEL 25”
Z AXIS TRAVEL 22”
PALLET SIZE 15.75”
SPINDLE MOTOR 30HP
SPINDLE SPEED RANGE 12,000RPM
SPINDLE TAPER BT-40
RAPID TRAVERSE(X,Y,Z) 1,400 IPM
TOOL STORAGE CAPACITY 100 ATC
AUTO PALLET CHANGER CAP. 6+1
HAAS NEXGEN CONTROL WITH HAAS CONNECT
WIRELESS NETWORKING
PROBING
HENNIG CHIP CONVEYOR
12000 RPM SPINDLE / BT40
HIGH PRESSURE COOLANT
THROUGH SPINDLE COOLANT
100 ATC
HIGH INTENSTY LIGHTING
REMOTE JOG W/ SCREEN
1 GB MEMORY
TO INCLUDE QUANTITIES OF BT40 TOOLING
