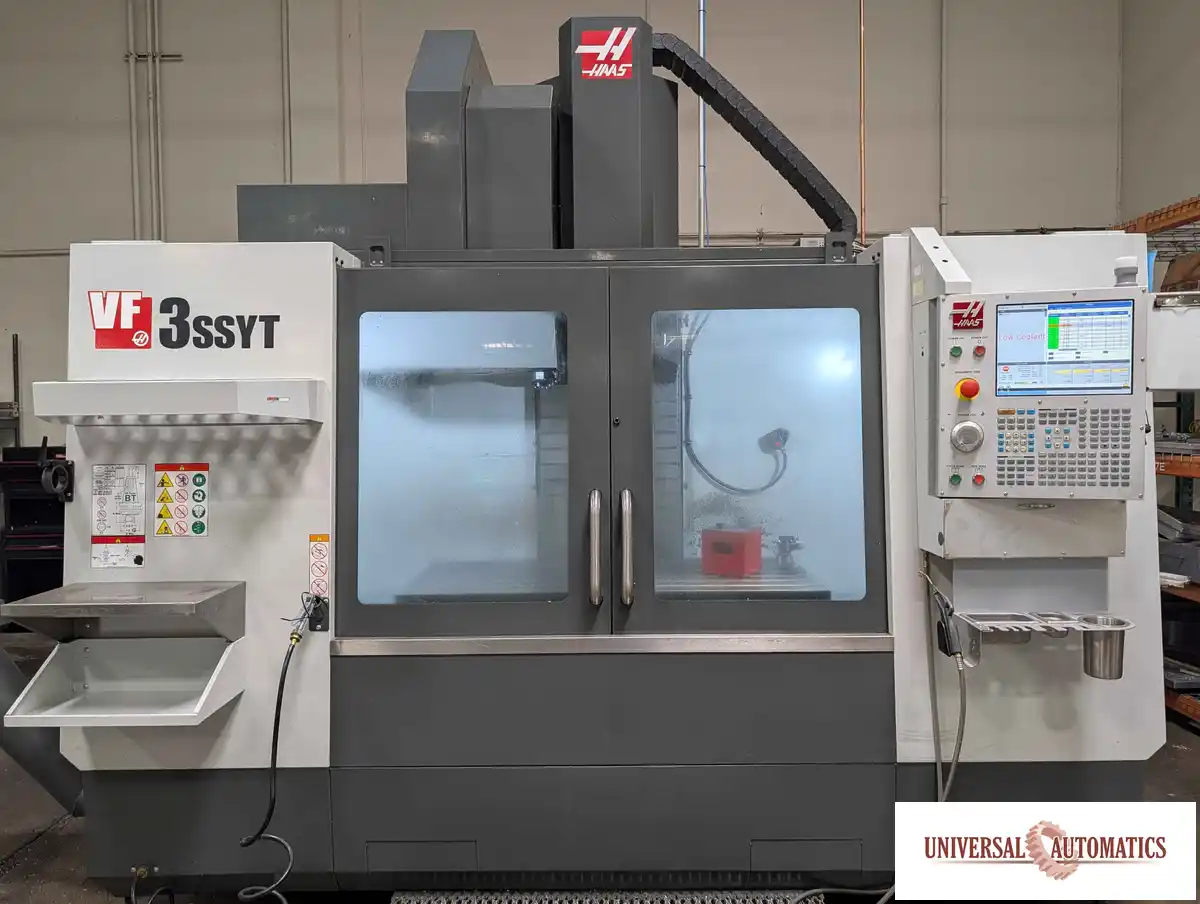

2022 HAAS VF-3SSYT VERTICAL MACHINING CENTER - Available Immediately!

2022 HAAS VF-3SSYT VERTICAL MACHINING CENTER - Available Immediately!

Have one to sell?
234.571.1310
sales@universalautomatics.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
VF-3SSYT
Condition:
Excellent
Year:
2022
Stock #:
508028252
Status:
For Sale
Country:
United States

Description

2022 HAAS VF-3SSYT VERTICAL MACHINING CENTER (used) Equipped with: RENISHAW WIPS / PROBING (NO SPINDLE PROBE OR OTS), HAAS NEXGEN CONTROL WITH HAAS CONNECT, WIRELESS NETWORKING, 1GB MEMORY, CHIP AUGER, EXTENDED Y TRAVEL, 50 SIDE MOUNT ATC, REMOTE JOG, TO INCLUDE: MISC. BT40 TOOLS.

X40"1,016 mm
Y26"660.4 mm
Z25"635 mm
Power30 hp22.4 kW
RPM12,000 RPM12,000 RPM
# ATC5050
TaperBT 40BT 40
Table-W25"635 mm
Table-L54"1,371.6 mm
ControlCNC (HAAS NEXGEN CONTROL WITH HAAS CONNECT)CNC (HAAS NEXGEN CONTROL WITH HAAS CONNECT)
DimensionsAPPROX DIMENSIONS 152" X 99" X 102"HAPPROX DIMENSIONS 152" X 99" X 102"H
WeightAPPROX WEIGHT 12,000 LBSAPPROX WEIGHT 12,000 LBS

TRAVELS XYZ 40" X 26" X 25"
SPINDLE POWER 30 HP
SPINDLE SPEED 12,000 RPM / BT40
ATC CAPACITY 50
RAPID TRAVERSE 1,400 IPM

RENISHAW WIPS / PROBING (NO SPINDLE PROBE OR OTS)
HAAS NEXGEN CONTROL WITH HAAS CONNECT
WIRELESS NETWORKING
1GB MEMORY
CHIP AUGER
EXTENDED Y TRAVEL
50 SIDE MOUNT ATC
REMOTE JOG
APPROX WEIGHT 12,000 LBS
APPROX DIMENSIONS 152" X 99" X 102"H
TO INCLUDE: MISC. BT40 TOOLS AND PRESETTER
