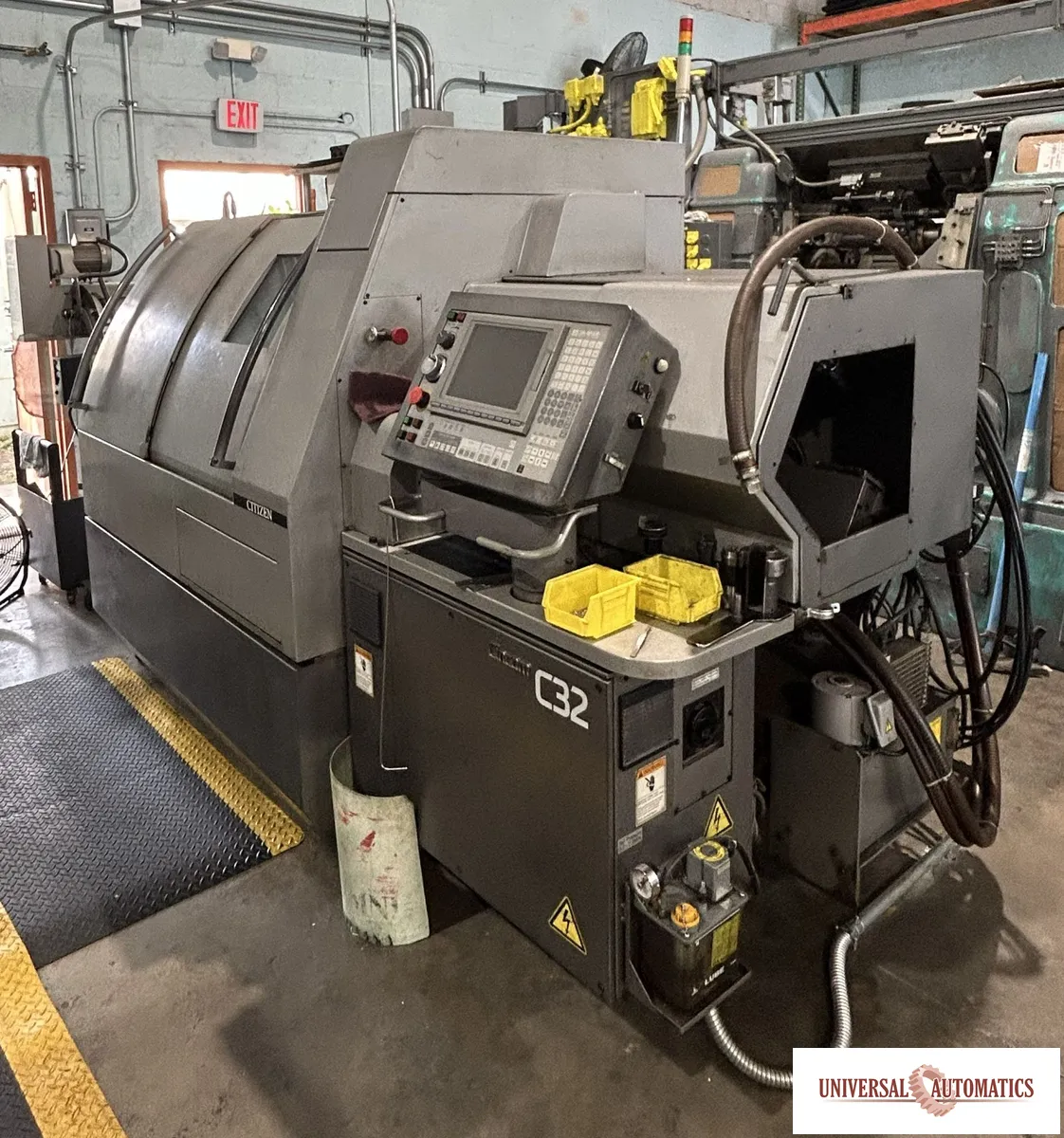

CITIZEN C32VIII (2M8) Swiss Type CNC Lathe (used) New 2008 w/CAV32-IS magazine bar loader

Unique, servo-control design minimizes the number
of moving parts, resulting in a highly compact, near
maintenance-free turning center.

Its patented Synchronous-Superimposed functionality allows multiple
operations to be performed simultaneously. With
five axes (plus standard C-axis on both the main and
sub-spindle) and an array of fixed and rotary tools.

• For simple or complex geometries to 1.25" diameter
3 12.5" long per chucking
• 100% servo driven, complete modular design
• Built-in main and sub spindles
• 6 axes simultaneously controlled (X1, Y1, Z1, X2, Z2, Z3)
• Space saving tool post design (patent pending)
• Mounts up to 18 tools (live and stationary) for front
and back work
• Enhanced synchronized-superimposed operation
(patent pending)
• PC based controller, with PC card slot and networking
capability
• Displaced thermal effects for high precision over
long operating periods
• Full-open cover speeds setups and maintenance
• Cincom System M6B controller
• On machine program check (patent pending)
• Machine status memory and display (patent pending)
• 3-dimensional interference check
• Internet service and support
MODULAR DESIGN & SERVO CONTROL

Maximum machining diameter 32mm [1.25"]
Maximum machining length 320mm [12.5"] per chucking
Main spindle speed 200~8,000 min-1
Rotary tool spindle speed 200~5,000 min-1
Maximum chuck diameter of the
back spindle 32mm [1.25"]
Maximum workpiece length for the front
side collection from the back spindle 145mm [5.7"]
Back spindle speed 200~7,000 min-1
Number of tools to be mounted 18 max.
Turning tools on the gang tool post 5
Rotary tools on the gang tool post 4
Second gang tool post 4 main/5 back standard
optional: 3 main (1 fixed and 2 rotary)/
4 back (2 fixed and 2 rotary)
Tooling size
Tool (gang tool post) 163163130mm [625"3.625"35"]
Sleeve 25.4mm [1"]
Chuck and guide bushing models
Main spindle collet chuck TF37
Guide bush TD32
Lego type chuck ER11/AR11, ER16/AR16
Back spindle collet chuck TF37
Rapid feed rate 20 m/min (all axes)
Motors
Main spindle drive 3.7/7.5KW
Guide bushing drive 0.75/1.5KW
Back spindle drive 1.5/2.7KW
Tool spindle drive of tool post 1 1KW
Tool spindle drive of tool post 2 1KW
Center height 1,132mm [44.5"]
Input power capacity 10KVA
Weight 3,050kg
