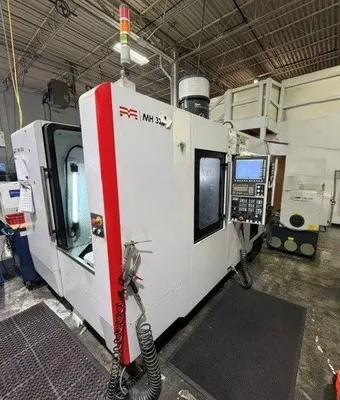

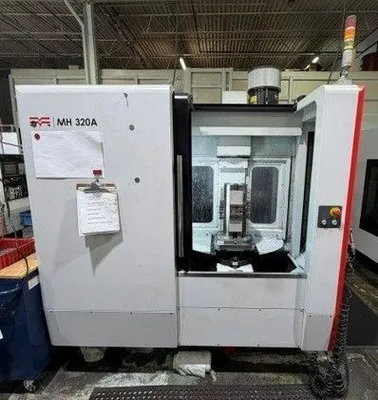

2021 METHODS MH320A Horizontal Machining Center (used) LOW HOURS!

Standard Features
Fanuc 0iM F control
15" LCD Display Manual Guide I
• AICC I 40 Block Look Ahead
• 2mb of part program storage memory
• Custom Macro
• 400 Tool Offsets
• 48 Pairs of Work Offsets
• Cylindrjcal Interpolation
BigPlus CAT40, 15,000rpm Direct Drive Spindle
20hp power & 80ft-lbs torque at 10min duty cycle
• 40 Tool ATC with big & heavy tool functions
• XIV/ Z Rapid Travels -1968ipm / S0m/min
14,SS0lbs / 6,600kg machine weight
Linear Roller Guides in X, V & Z Axes

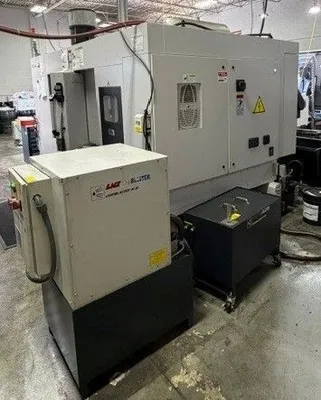

• Scraper type conveyor
Dual internal chip augers
• Coolant thru ball screws

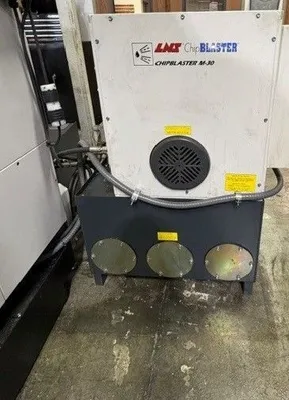

1000psi / 70bar thru spindle coolant ready, (pump not included) Double anchored, pre-tensioned ball screws
• Automatic oil lubrication system with gravity waste-oil recover tank Remote manual pulse generator (MPG) hand-wheel
Extra 8-M code functions
Full enclosed splash guard and roof with mist collector preparation Dust proof electrical cabinet with heat exchanger

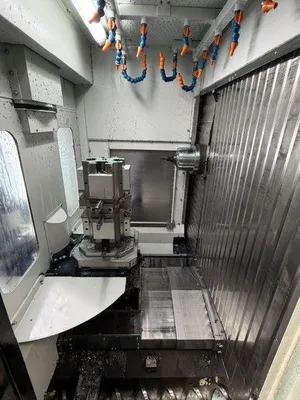

Coolant flush and air blast nozzles at spindle
Coolant chip flush wash down for machine bed
Manual coolant flush gun
Manual air gun
LED Interior work lights
3 color signal light
• Tool kit
• Auto power off
Methods Safety Specification, (modified CE Mark)
• Operation, Maintenance & Electrical Manuals (CD)

MACHINE SPECIFICATIONS
Maximum longitudinal travel, X axis 18.1" / 460mm
Maximum cross travel, Y axis 18.l" / 460mm
Maximum vertical travel, Z axis 13.7" / 350mm
4th Axis Travel o to 360°
Spindle center to pallet surface. 2.36" ~ 20.4" / 60mm ~ 520mm
Spindle nose to table 2.36" ~ 16.1" / 60mm ~ 410mm

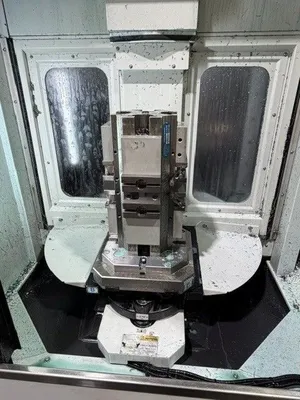

PALLET
Table dimensions 12.6" x 12.6" / 320mm x 320mm
Maximum load on table 551lbs / 250kgs
Maximum work piece diameter 16.9" / 430mm
Maximum work piece height 18.7" / 475mm
Minimum index 0.001•
Table work surface configuration 8, M-12 tapped holes@ 3.94" / 100mm between
Distance from floor to table work surface 39.4" / 1000mm
Pallet thickness1.42" / 36mm
Pallet change time 10sec.

SPINDLE
Spindle taper 7/24, No. 40
Minimum spindle speeds 150 rpm
Maximum spindle speeds 15,000 rpm
Spindle motor (l0min)20hp / lSkW
Spindle motor (continuous rating) 10hp / 7.SkW
Spindle torque (l0min) 80ft-lb / 108Nm
Spindle torque (continuous rating) 52ft-lb / 70Nm
Spindle bearings, qty. 7 ceramic <1>2.76" / 70mm
Spindle bearings lubrication Oil & Air

RAPID TRAVERSE
Rapid traverse rate: X, Y, Z. : 1968ipm / S0m/min
Cutting feed rate: X, Y, Z .787ipm / 20m/min
Rapid feed rate: 4th Axis 44rpm

AUTOMATIC TOOL CHANGER

Tool change system Double swing arm
Tool selection Random memory, bi-directional
Tool shank BigPlus CAT40
Magazine capacity 40 tools
Maximum tool weight 17.Glb / 8kg
Maximum tool length, from gauge line12.6" / 320mm
Maximum tool diameter, magazine full cl>3.14" / 80mm
Maximum tool diameter, adjacent pots empty cl>G.3" / 160mm
Tool to tool change time 2.6 sec

AUTO LUBRICATION SYSTEM
Auto oil tank capacity l.06gal / 41iter
FLOOD COOLANT SYSTEM
Coolant tank capacity 92.Sgal / 350liter
Pump size (Flood coolant) 2hp / 1.SkW

HYDRAULIC UNIT
Hydraulic unit capacity 13.2gal / 50liter
Pump size.2hp / l.SkW

AIR/ POWER REQUIREMENTS
Power supply 220V +/- 10%
Power supply 25 kVA
Air supply pressure 78psi - 99psi

MACHINE WEIGHT/ DIMENSIONS
Machine weight 14,550 / 6,600kg
Machine dimensions: Height 90" / 2,288mm
Machine dimensions: W x L (with conveyor)139" / 3,530 x 125" / 3,175mm
Machine maintenance area: W x L 135" / 3,430mm x 169" / 4,290mm

FANUC 0iMF Standard Features
400 Registered Programs
48 Work Offsets
Absolute Incremental Programming (G90/G91) Absolute position detector
Additive Work Coordinate Sys (48 Sets)
Al Advanced Preview Control (40 Block) Auto Accl/Decl Rapid: Traverse Feed:
Auto Reference Point Return (G28) Automatic Coordinate System Setting
Axis Interlock
Background Edit Function
Backlash Compensation
Bell Shaped Accl/Decl (After Cutting)
Bell Shaped Accl/Decl (Before Look)
Buffer Register
Built in PMC
Cabinet Structure Sealed Dust Proof
Canned Cycle (G73/G76, G80-G89)
Circular Interpolation
Circular Interpolation by Radius R
Clock Function
Controlled Axis (XN/Z)
Coordinate System Setting (G92)
Custom Macro
Cutter Radius Comp. (G40/G41/G42)
Cycle Start
Data Protection Key
Decimal Point/Cale Type Input
Detach of Controlled Axis
Display Function
Dry Run
Dwell (G04)
EIA/ISO Automatic Recognition
Emergency stop
English Display
Environ Conditions (0-45 deg C VIB 0.5G) Exact Stop (G61/G64)
Exact Stop Check (G09)
Extended Part Program Editing
External Data Input
Feed Hold
Feed Rate Direct Command
Feed rate Override (0-200%/10%)
Handle Feed
Helical Interpolation (G02, G03)
High resolution detection interface
History Display Function
Label Skip
Least Command Increment (0.001 mm) Least Input Increment (0.001 mm)
Linear Accl/Decl (After Cutting)
Linear Accl/Decl (Before Cutting)
Li near Interpolation ( GO 1)
Manual Reference Point Return
Max. Prog. Dimensions(+/- 99999.999mm) MDI Function
Misc. Function M3 Digit Command Optional Stop
Override Cancel
Part Program Storage & Editing
Position detector/serial pulse coder Positioning (GOO)
Power Source (NC & Servo)
Program No. Search
Program Protect
Programmable Data Input (G10)
Rapid Traverse Bell Shaped Accl/Decl. Rapid Traverse Override (1, 25, 50, 100%) Reader Punch Interface 1ch RS232C Reference Point Return Check (G27) Return from Reference Point (G29)
Rigid Tap

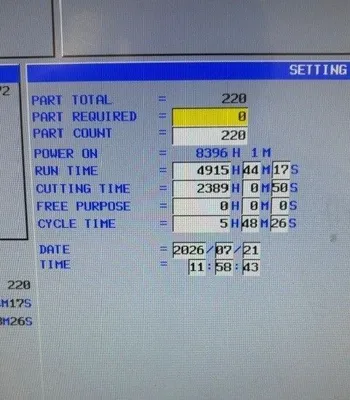

Run Hour/Parts Number Display

Self-diagnosis function
Sequence No. Search
Simultaneous Control Axis Expansion
Simultaneous Controllable Axes
Skip Function(G31)
Spindle Function 5 Digit Command
Spindle Speed Override
Stored Pitch Error Compensation
Sub-Program Calling
Tool Function T4 Digit Command
Tool Length Offset (G43/G44/G49))
Tool Offset memory C
Tool Offset Number Addition
Work Coordinate System(G52-G59)
