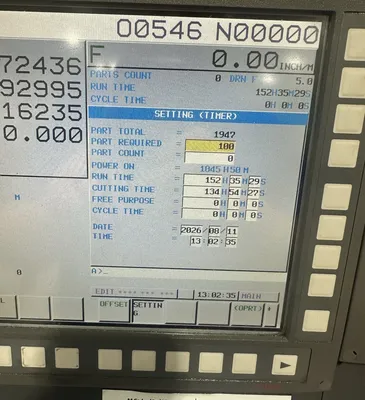

UNDER 1K HRS - Ran oil – Prototype Medical Parts Machine - NSK - Y2 LIVE BACK WORKING!
Have one to sell?
ConditionUsed
1 available

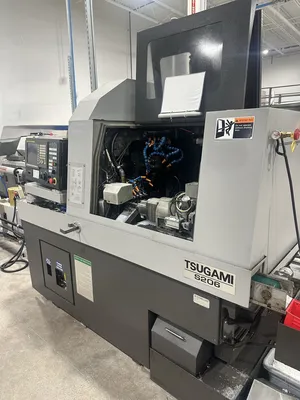

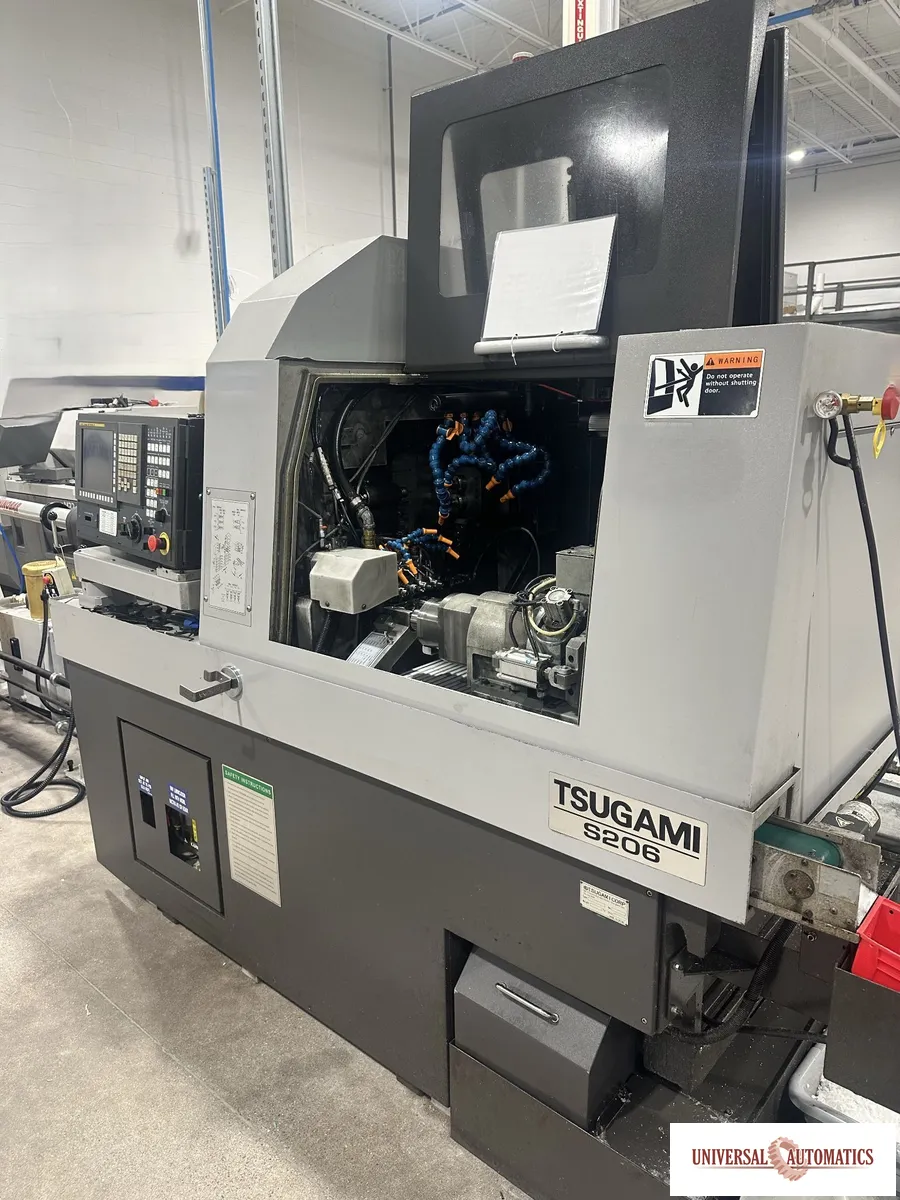

(1) TSUGAMI S206 Swiss Type CNC Lathe (used) New 12/2014 put in service 2015 - Equipped with: Eight Cutting Axes (X1, Y1, Z1, X2, Z2, Y2, C1, and C2), Fanuc 32iB Control, MP Systems High Pressure Coolant System, Fire Suppression, Part Conveyor, Chucker Conversion capable, NSK High Speed Spindle System, Patrol Light, Lexair Rhino Bar Single Bar Feed System (6’ bars), All tooling goes with, All available manuals, tool kit, keys.
The New Tsugami S206 is a state of the art Swiss Turning Center manufactured by Precision Tsugami Corporation, recognized worldwide for superior precision machine tools since 1937.
The S206 platform delivers advanced technology capability and performance at a competitive price.
Its standard Eight Cutting Axes (X1, Y1, Z1, X2, Z2, Y2, C1, and C2) along with S Series Abile Programming Software can make easy work of your toughest applications.
High Precision- High Speed- High Rigidity
Machine Specifications
Maximum Machining Dia. .787 (20mm)
Maximum Machining Length 8.26" (210 mm) / Chucking
Main Spindle Speed 200~10,000
Rotary Tool Spindle Speed 200~8,000
Back Spindle Max. Dia. .787 (20 mm)
Back Spindle Front Ejection maximum length 3.2" (80mm)
Back Spindle Speed 200~10,000
Rapid Traverse Rate 32 M/min
Input Power 6KVA
Center Height 39.37 (1,000 mm)
Weight 7,260 lbs
Motors
Main Spindle 3 / 5 hp
Back Spindle 2 / 3 hp
Rotary Tool 1.0 hp
Coolant 0.5 hp

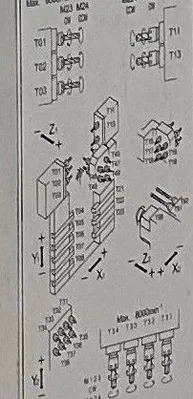

Number of Mountable Tools
Gang Tool Post (turning) 8
Gang Tool Post (live) 5
Front Drilling 5
Back Drilling 13
Tooling Size
Turning Tools 1/2" Sq
Main Spindle Collet Holders 22mm
Sub Spindle Collet Holders 20mm
1. Abile software -simplified PC based CAM programming aid.
2. Simultaneous all axes control
3. AC servo axes control
4. Main spindle speed 200 ~ 10,000 rpm 5-digit stepless command
5. Back spindle speed 200 ~ 10,000 rpm 4-digit stepless command
6. Live tool spindle speed 200 ~ 8,000 rpm 4-digit stepless command
7. Main spindle Collet Chuck unit (S&M TF25)
8. Back spindle Collet Chuck unit (S&M TF25)
9. Parts catcher with exit conveyor and basket (max part length = 80mm)
10. Cutting oil tank with coolant tank level detector (40 Gal. Capacity)
11. Sub spindle air blast
12. Integral motor driven guide bushing unit
13. Door interlock with switches
14. Main spindle C axis with brake
15. Sub spindle C axis with brake
16. Spindle Cooling for Main, Sub and Guide Bushing Motors
17. Air/Oil pressurized driven tool gearbox units
18. Air pressurized guide bushing unit
19. Centralized lubrication system w/oil level detector (0.8 Litter Capacity)
20. Leveling bolts & pads
21. Hand tools (spanners, wrenches, etc.)
22. One complete set of manuals
23. Machine test report
24. Parameter list

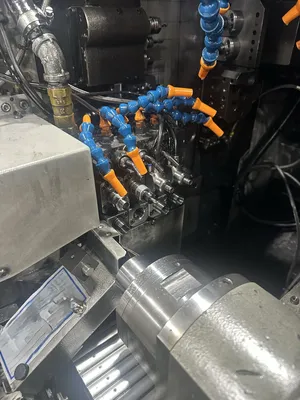

25. (8) ½” Square turning tool positions main spindle
26. (5) Driven tool positions main spindle, cartridge type
27. (5) ID positions, main or sub
28. (4) Static back working stations- ID or Turning
29. (2) Main spindle deep hole drill positions (max 100mm)
30. Up to 35 tool positions are possible
Standard Specifications of Fanuc 32i-B CNC System
1. 10.4 " Color LCD
2. 99 Pairs of Tool Offsets
3. I/O Interface for RS232C / PCMCIA Card
4. Ethernet T10 Connection Interface
5. Abnormal Load Detection
6. Background Edit Function
7. Canned Cycles for Drilling
8. Canned Cycle for Threading
9. Chamfer/Corner Rounding Function
10. Chasing Function
11. Continuous Thread Cutting
12. Constant Surface Speed Control (Main & Back)
13. Custom Macro B
14. Cut Off Breakage Detection
15. Cylindrical Interpolation
16. Direct Drawing Dimension Programming
17. Extended Part Program Edit
18. Helical Interpolation
19. I/O Interface
20. Inch Metric Changeover
21. Manual Pulse Generator with Program Check Function
22. Multiple Repetitive Cycles
23. Polar Coordinate Interpolation
24. Production Hour and Quantity Indicator
25. Programmable Data Input
26. Spindle Speed Fluctuation Device
27. Spindle Synchronous Control
28. Tool Geometry and Wear Offset
29. Tool Nose Radius Compensation
30. 0.1 Micron Specification
31. Minimum Increment (0.00001 inch)
32. 256K Program Storage Total
33. HRV Control
34. Rapid Feed rate: 32m/min
35. Reference Point Return (Absolute Position Detector)
36. Run Hour Display
37. Self-Diagnosis Function
38. Single Point Threading
39. Spindle Speed Fluctuation Detection
40. Superimposed & Simultaneous Control System
41. Tape Code (ISO Automatic Recognition)
42. Tool Breakage Detector (Spindle Speed Check)
43. Tool Nose Radius Compensation
44. Main/Back Spindle Synchronization
45. C-Axis Control (Main)
46. C-Axis Control (Back)
47. Canned Cycles for Drilling (G80/83/85/89)
48. User Macro (G65-67)
49. Rigid Tapping Main, Sub and Cross Tools

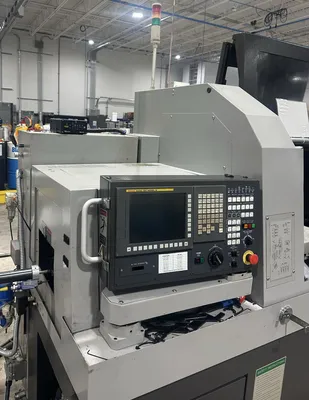

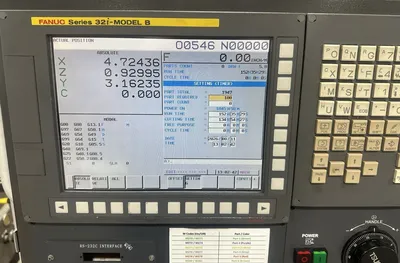

Fanuc 32iB Control
MP Systems High Pressure Coolant System

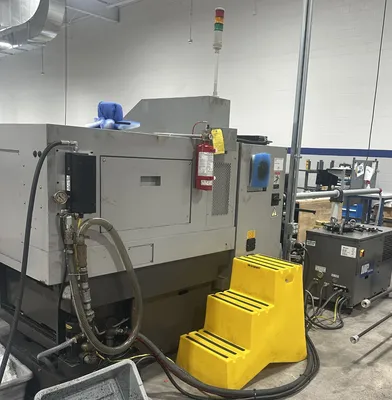

Fire Suppression
Part Conveyor, Chucker Conversion capable
NSK High Speed Spindle System, Patrol Light
Lexair Rhino Bar Single Bar Feed System (6’ bars)
All tooling goes with
All available manuals, tool kit, keys.
