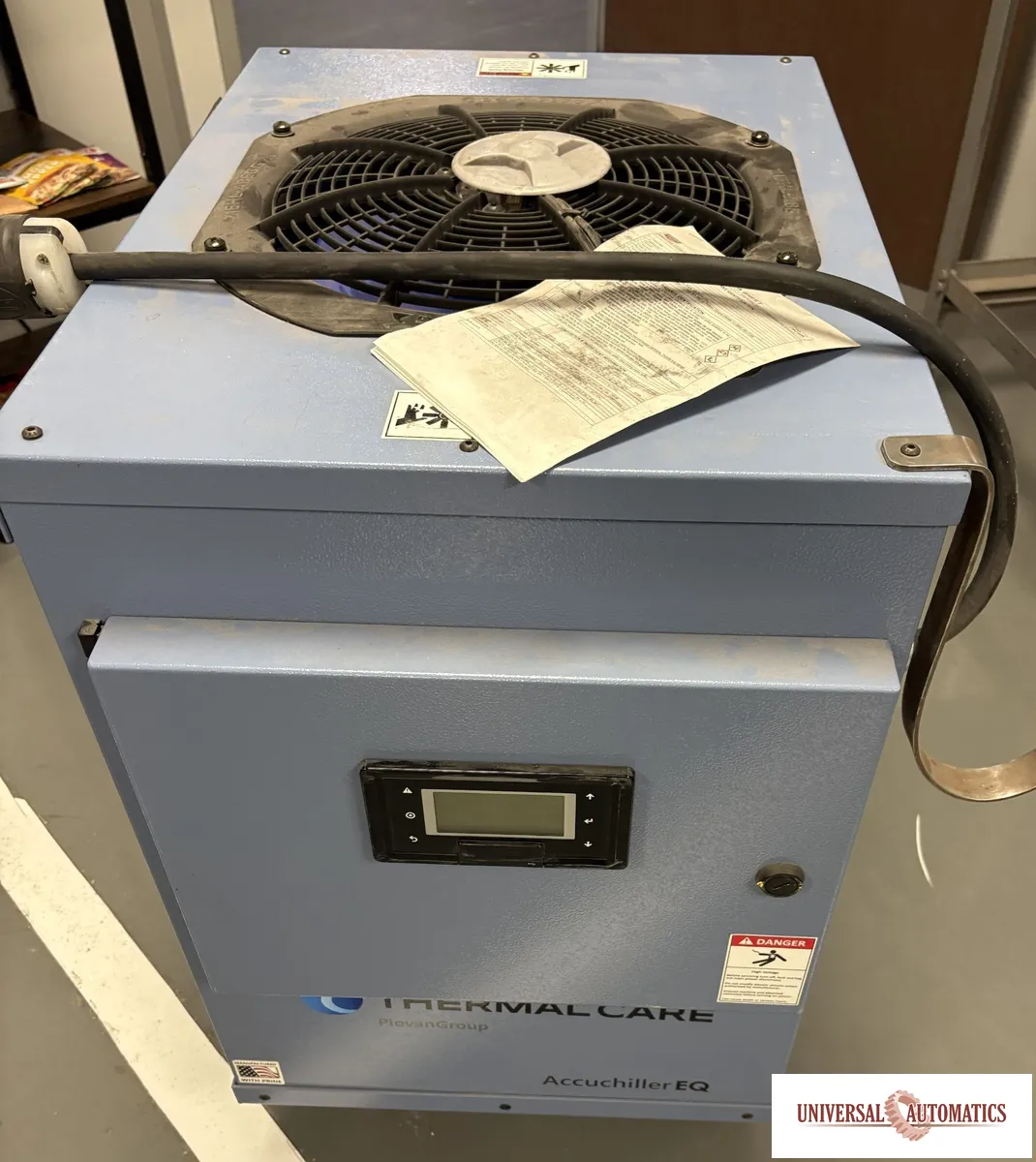

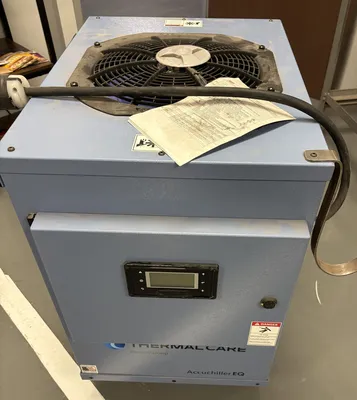

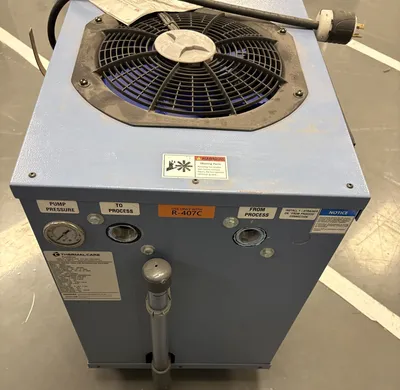

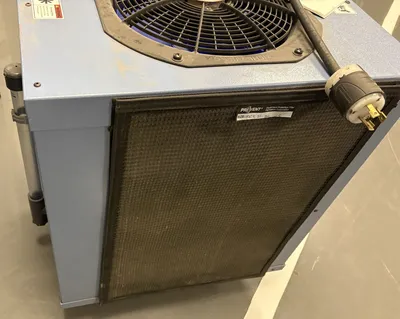

2023 THERMAL CARE ACCUCHILLER Model EQ3A01 - Industrial chilling unit

The Thermal Care Accuchiller EQ3A01 is a 1.0-ton air-cooled portable industrial chilling unit designed for 230-volt, single-phase, 60-Hz power. It features a direct-drive scroll compressor, a stainless steel brazed plate evaporator, a nonferrous fluid circuit, and an internal polyethylene tank reservoir.

Performance & Operational Specifications:

Cooling Capacity: 1.0 Ton (12,000 BTU/hr based on 50°F leaving coolant and 95°F ambient air)Temperature Set Point Range: 20°F to 65°F (-7°C to 18°C); expandable to 80°F with options

Pump Size: 1/4 HP
Pump Flow Rate: 2.0 GPM
Pump Pressure: 80 psi
Reservoir Capacity: 3 gallons (approx. 11 liters)
Refrigerant: Eco-friendly or standard industrial blend (varies by exact 2023 production build, such as R-407C or low-GWP equivalents)

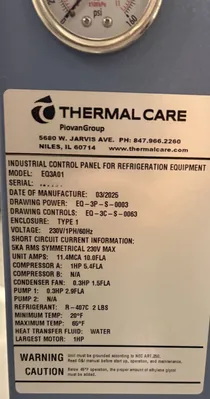

Physical & Electrical Data:

Electrical Requirements: 230V / 1-phase / 60Hz
Dimensions: Approx. 33.125" L x 18.625" W x 27.625" H (compact portable footprint with casters)
Weight: 255 lbs (shipping) / 280 lbs (operating)

Key Standard Features:

Digital PLC / microprocessor controller with extensive system diagnostics and error logging
Hot gas bypass capacity control for tight temperature precision and extended compressor lifespan
Integrated process Y-strainer to protect the evaporator loop from facility debris
