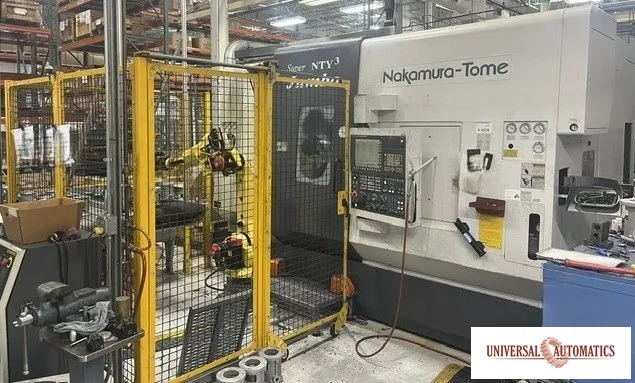

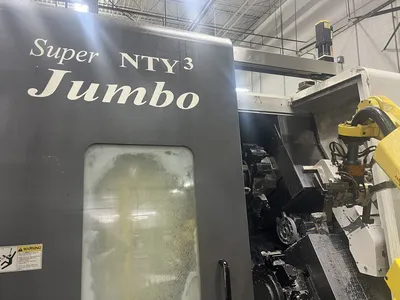

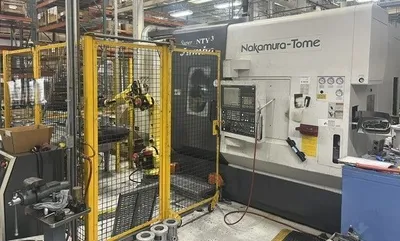

NAKAMURA TOME Super NTY3 Jumbo CNC Turning Center (used) 3" Bar Cap / 10" Chuck / 3-Turrets All Y-axis!

The Nakamura-Tome Super NTY3 Jumbo is a heavy-duty, 9-axis multitasking turning center featuring an opposed dual-spindle and triple-turret configuration. It handles larger bar capacities and features a 10-inch chuck design tailored for simultaneous high-productivity machining.

Key Capacities & Performance

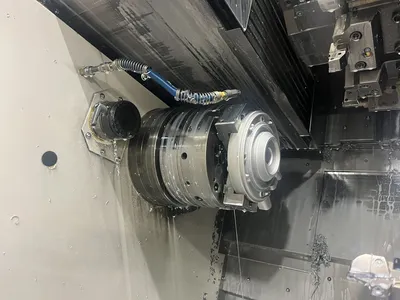

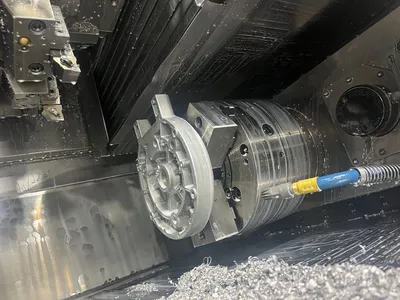

• Chuck Size: 10 inches (left and right spindles)
• Max Turning Diameter: 325 mm (12.8 inches)
• Max Turning Length: 250 mm (9.84 inches)
• Bar Capacity: Up to 80 mm (3.15 inches) on the left and 71 mm (2.8 inches) on the right
• Spindle Speed: Up to 4,500 rpm
• Spindle Motor Power: Approx. 26 kW / 34.9 hp

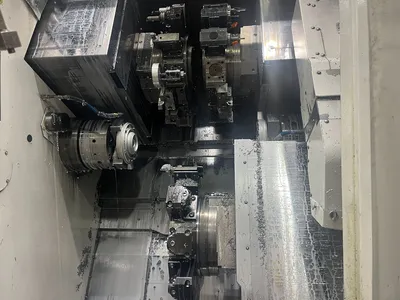

Turret & Axis Specifications

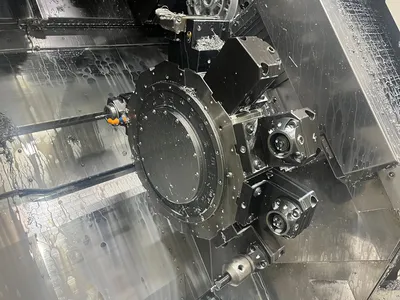

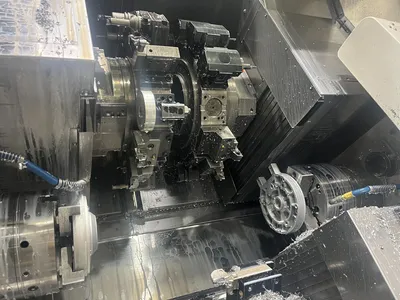

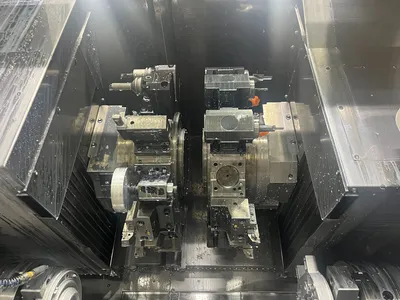

• Number of Turrets: 3 independent turrets (2 upper, 1 lower), each equipped with a Y-axis
• Turret Configurations: Offered in a 16-station Super Mill layout or a 12-station standard system
• Driven Tool Power / Torque: 10/5 HP with 40 Nm torque
• Y-Axis Travel: +/- 55 mm (+/- 2.16 inches)
