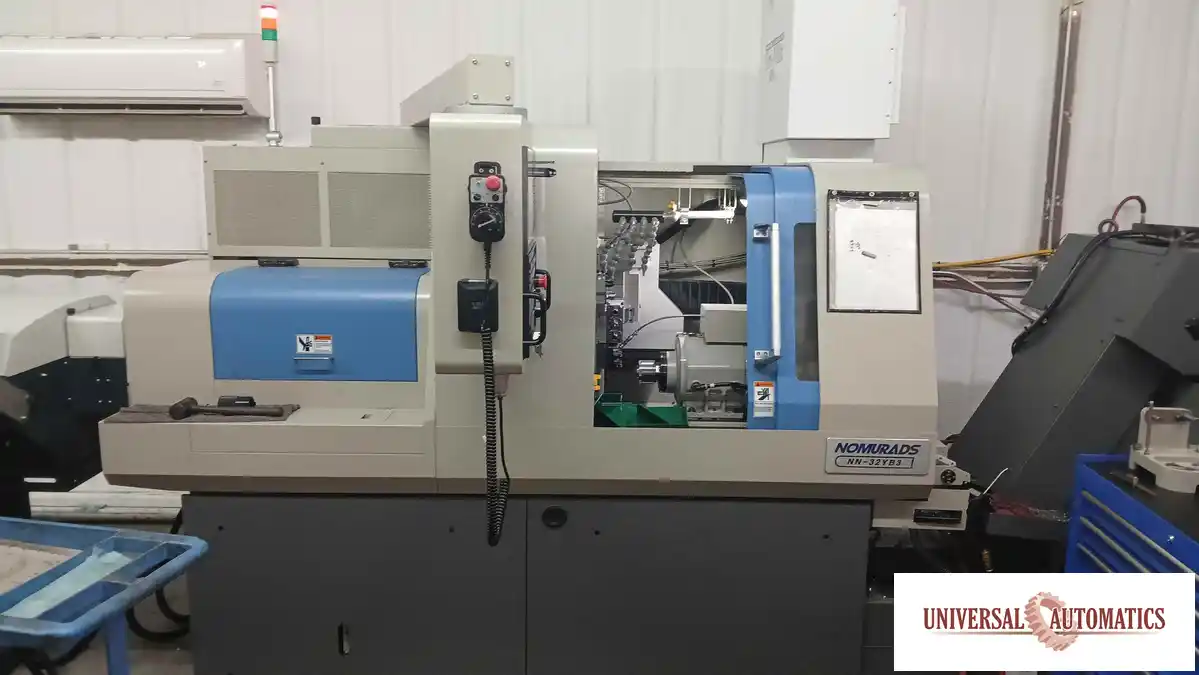

2022 NOMURA NN32YB3 Swiss Type CNC Lathe (used) - Y2-AAXIS / EXCELLENT CONDITION / LOW HRS / INSPECTED!
Have one to sell?
ConditionUsed
1 available
2022 NOMURA NN32YB3 Swiss Type CNC Lathe (used) - Y2-AXIS / EXCELLENT CONDITION / LOW HRS / INSPECTED! Equipped with - LNS Alpha 538 magazine bar loader (12'), MP Systems High Pressure Coolant System, Mist Collector, Part conveyor, Chip Conveyor, Mitsubishi M70 Control, ran oil, misc tooling.
Power up main spindle motor
($1: 3.7→5.5kW、$2: 2.2→3.7kW)
Rapid feed rate speed：X1 ： 20m/min.
Z1、Y1、Z2、Y2 ： 28m/min.
X2 ： 25m/min.
New CNC M70V (MITSUBISHI) built-in
(PLC computing power:4 times the speed of conventional model)
Back tool Type B
1 OD tool (ER16) + 3 ID tool (ER16) + 3 Live tool (ER16)
Standard Accessories
ID attachment
Live tool unit
Main spindle cooling unit(for main and back)
Synchronous rotary guide bush unit / transmission unit
Drill holder
Tap holder
Tool holder
Main: Chuck sleeve / Spring / Spindle cap(1 set)
Back: Chuck sleeve / Spring / Spindle cap(1 set)
Auto power interception
Automatic lubricator(with level detector)
Coolant oil unit(for main and back)
Coolant oil cut-off detector (for main and back)
Main spindle load detection mode
Door safety interlock switch
Working light (LED light)
Parts conveyor (with parts receiver and basket)
Parts catcher
Leveling pads
