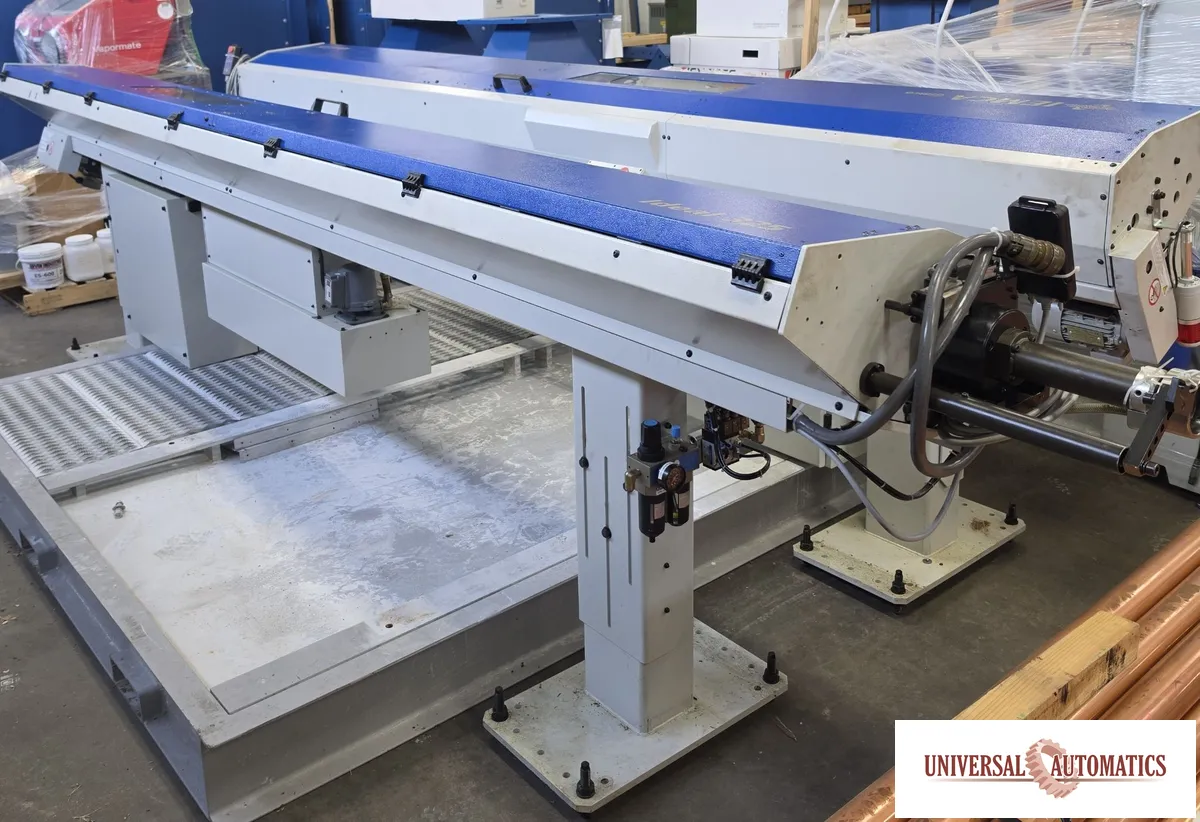

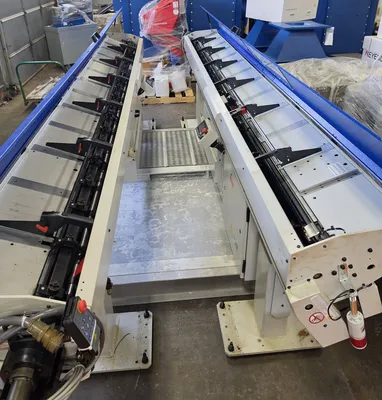

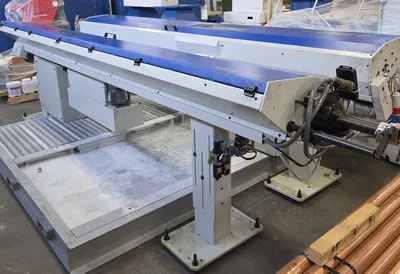

2019 IEMCA IDEAL 325 Magazine Bar Loaders (used) two available - 3-25mm x 12' bar capacity for SWISS

The IEMCA Ideal 325 is an automatic magazine-type bar feeder designed for sliding and fixed headstock lathes, handling bar diameters from 3 mm to 26 mm (1/8" to 1").

Key Specifications:

Bar Diameter Capacity: 3 mm to 26 mm (1/8" to 1")
Bar Length Capacity: 1,000 mm to 3,700 mm (3'3" to 12'2")
Maximum Bar Weight: 18 kg (40 lbs)Magazine Capacity: 10.7 linear inches
Maximum Feeding Speed: 24 inches per second (adjustable)
Bar Change Time: Approximately 28 seconds (for a 12-foot bar)
Power Requirements: 230V AC, 3-phase, 2.5 kVA / 1.8 kW
Control Voltage: 24V DC
Compressed Air Required: 90 psi, 1 cfm
Approximate Weight: 1,530 to 1,700 lbs (approx. 690 kg).
