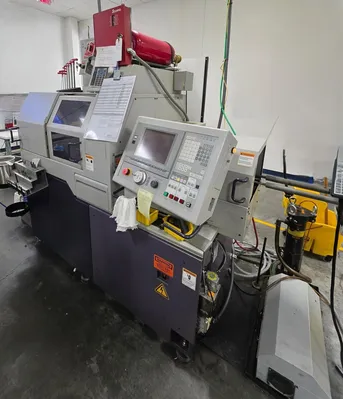

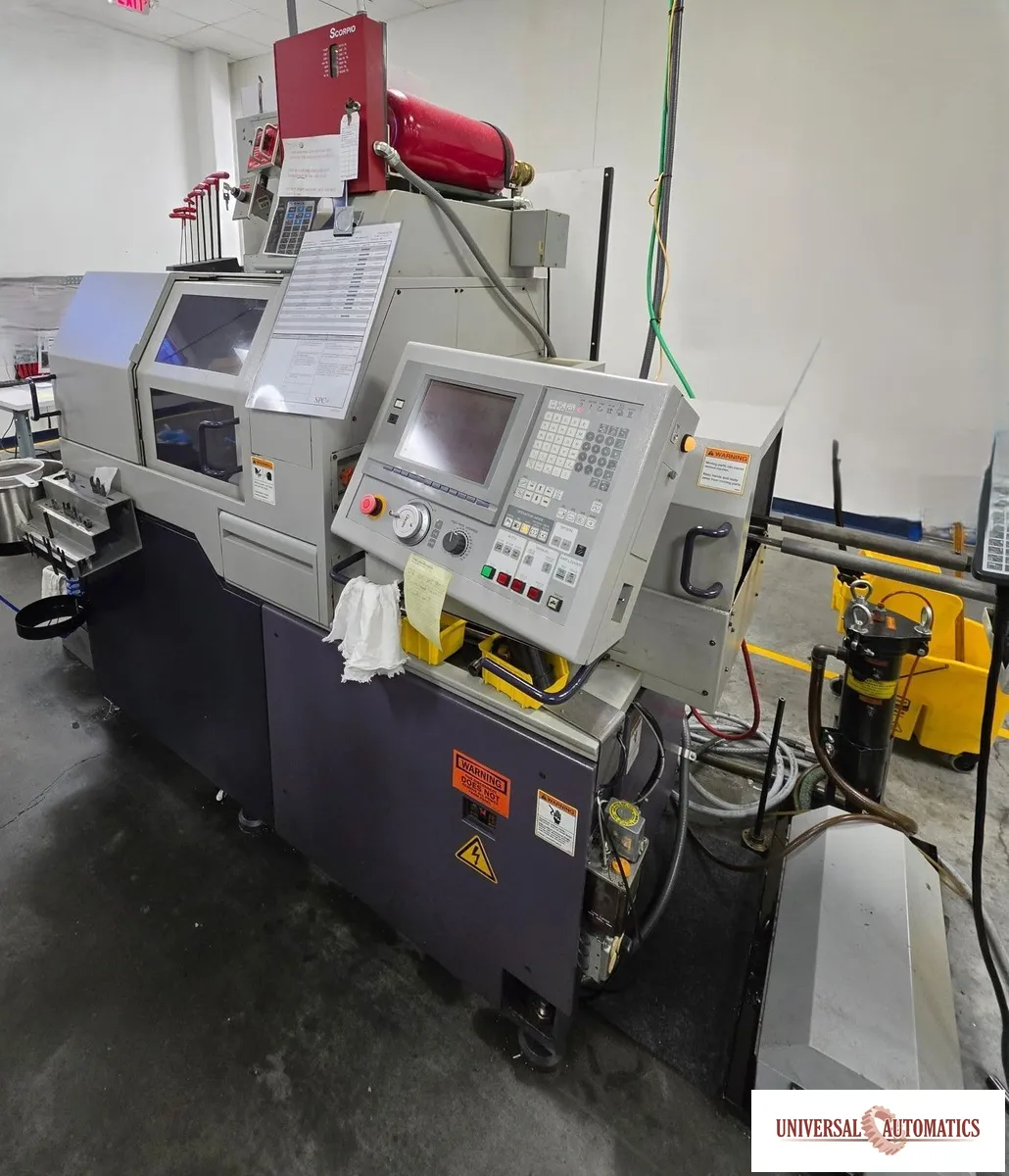

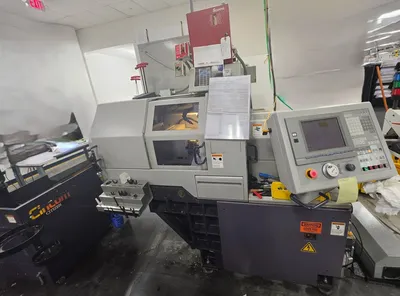

CITIZEN L20VIII (5M8) Swiss Type CNC Lathe WITH RARE - U121B LIVE FRONT WORK ATTACHMENT!
Have one to sell?
ConditionUsed
1 available

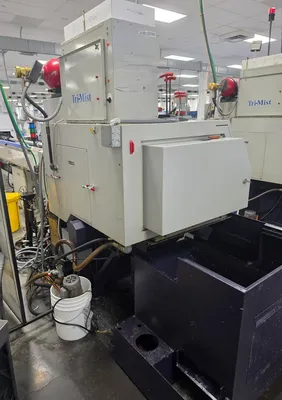

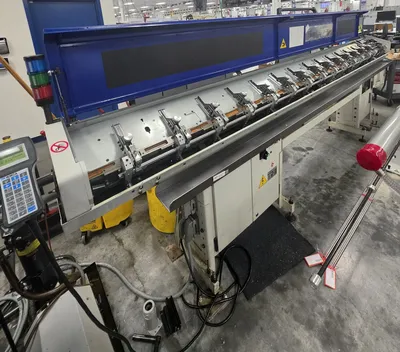

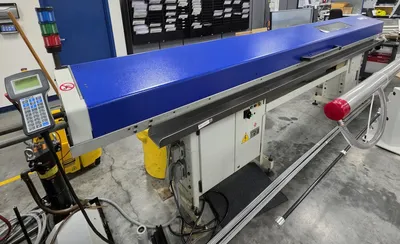

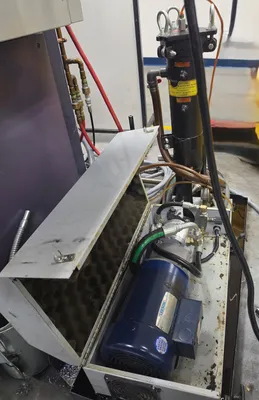

(1) CITIZEN L20VIII (5M8) Swiss Type CNC Lathe (used) New 2002 w/U121B front live work attachment w/2 live spindles, Mist Collector, Custom High Pressure Coolant Pump, Fire Suppression System, (4) Live spindle for gang, Iemca Genius 120 magazine bar loader (12' bars), misc tooling, collets, gb, etc, All available manuals, tool kit, keys. RAN OIL, Videos available upon request.
CITIZEN L20 VIII (5M8)
The CINCOM L20 VIII is a state of the art Swiss Turning Center manufactured by CITIZEN Watch Co. Ltd.
It features the 8 axis Simultaneous Cincom System M6 Control (Mitsubishi Meldas 635LC-AC11)
It’s standard five Cutting Axes (X1, Y1, Z1, X2, Z2, C1), one optional (C2) and Three miscellaneous Axes (A1, A2, A3) can make easy work of your toughest applications.
The user friendly editing function which utilizes Multi line Multi axes programming, along with superimposed and synchronized control make setting up the most complex jobs easy.
1) Simultaneous 8 Axes control
2) AC Servo Axes Control
3) Main Spindle Speed 200 ~ 10,000 rpm 5-digit stepless command
4) Back Spindle Speed 200 ~ 8,000 rpm 4-digit stepless command
5) Live Tool Spindle Speed 200 ~ 4.500 rpm 4-digit stepless command
6) L51620U33B 5 Rotary Tools Drive System
7) L51620U9130B Back Spindle Collet Chuck Unit (S&M TF25)
8) L51620U32J Work-piece Separator (max part length = 80mm)

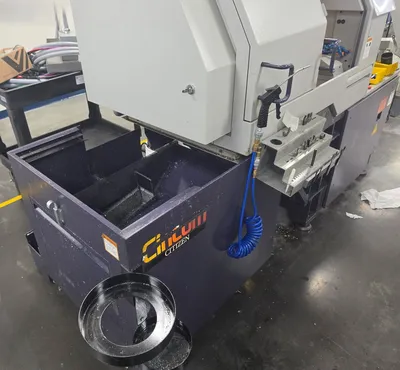

9) L51620U10R Cutting Oil Tank with Oil Level Detector (32 Gal Oil capacity)
10) L51620U60R Back Spindle Air Blow Unit
11) L1620U2150Z Synchronous Type Rotary Guide Bushing Unit for (uses S&M TD25NS)
12) L1620U9130Z Main Spindle Collet Chuck Unit (S&M TF25)
13) L51620Y76Z Door Interlock with Switches
14) Main Spindle Index (1°)
16) Centralized Lubrication System w/ Oil Level Detector (1.8 Litter Oil Capacity)
17) Air Pressurized Guide Bushing Unit
18) Leveling Bolts & Pads
19) Hand Tools (spanners, wrenches, etc.)
20) One Complete Set of Manuals
21) Test Chart
22) Parameter List
Standard Specifications of CNC System
22) 10.5 " Color LCD
23) 3-Spindle Speeds Command in the Single Block
24) 8 bit B-code Function
25) Absolute/Incremental Command (Combined Use in Same Block)
26) Automatic Power Off Function
27) Background Edit Function
28) Canned Cycle for Threading
29) Chamfer/Corner Rounding Function I & II
30) Constant Surface Speed Control
31) Continuous Threading Cycle
32) Cutting Feed rate: 1 - 8,000 mm/min
33) Cycle Time Check Function

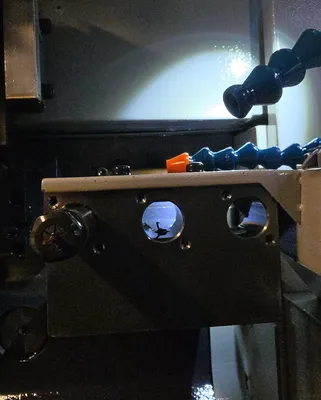

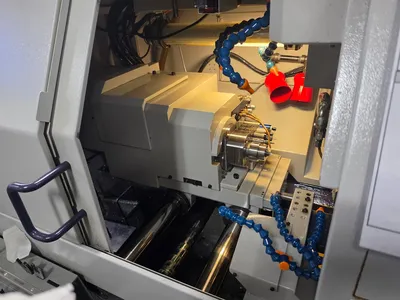

This machine also has the U121B live front work attachment! Which is probably a $20K option in today’s $.
L51620U121B Front Live Tool Unit including Two GSE307 $7,700.00
L51620U151B Back Live Tool Unit including Two GSE307 $7,700.00
The front or back live tool unit replaces the
existing stationary I.D. tool blocks and offers
up to two live tools for end working.
Also included are sleeves to accommodate
stationary tools in live tool positions when
necessary.
(Note: U121B and U151B cannot install at the same time)
(1) CITIZEN L20VIII (5M8) Swiss Type CNC Lathe (used) New 2002 w/U121B front live work attachment w/2 live spindles, Mist Collector, Custom High Pressure Coolant Pump, Fire Suppression System, (4) Live spindle for gang, Iemca Genius 120 magazine bar loader (12' bars), misc tooling, collets, gb, etc, All available manuals, tool kit, keys. RAN OIL, Videos available upon request.

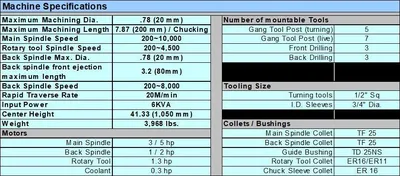

Imperial
| Spindle Hole Dia | 20 mm |
| RPM | 10,000 RPM |
| # Axis | 5 |
| Control | CNC (Cincom System M6 Control (Mitsubishi Meldas 635LC-AC11)) |
CITIZEN L20 VIII (5M8)
The CINCOM L20 VIII is a state of the art Swiss Turning Center manufactured by CITIZEN Watch Co. Ltd.
It features the 8 axis Simultaneous Cincom System M6 Control (Mitsubishi Meldas 635LC-AC11)
It’s standard five Cutting Axes (X1, Y1, Z1, X2, Z2, C1), one optional (C2) and Three miscellaneous Axes (A1, A2, A3) can make easy work of your toughest applications.
The user friendly editing function which utilizes Multi line Multi axes programming, along with superimposed and synchronized control make setting up the most complex jobs easy.
1) Simultaneous 8 Axes control
2) AC Servo Axes Control
3) Main Spindle Speed 200 ~ 10,000 rpm 5-digit stepless command
4) Back Spindle Speed 200 ~ 8,000 rpm 4-digit stepless command
5) Live Tool Spindle Speed 200 ~ 4.500 rpm 4-digit stepless command
6) L51620U33B 5 Rotary Tools Drive System
7) L51620U9130B Back Spindle Collet Chuck Unit (S&M TF25)
8) L51620U32J Work-piece Separator (max part length = 80mm)
9) L51620U10R Cutting Oil Tank with Oil Level Detector (32 Gal Oil capacity)
10) L51620U60R Back Spindle Air Blow Unit
11) L1620U2150Z Synchronous Type Rotary Guide Bushing Unit for (uses S&M TD25NS)
12) L1620U9130Z Main Spindle Collet Chuck Unit (S&M TF25)
13) L51620Y76Z Door Interlock with Switches
14) Main Spindle Index (1°)
16) Centralized Lubrication System w/ Oil Level Detector (1.8 Litter Oil Capacity)
17) Air Pressurized Guide Bushing Unit
18) Leveling Bolts & Pads
19) Hand Tools (spanners, wrenches, etc.)
20) One Complete Set of Manuals
21) Test Chart
22) Parameter List
Standard Specifications of CNC System
22) 10.5 " Color LCD
23) 3-Spindle Speeds Command in the Single Block
24) 8 bit B-code Function
25) Absolute/Incremental Command (Combined Use in Same Block)
26) Automatic Power Off Function
27) Background Edit Function
28) Canned Cycle for Threading
29) Chamfer/Corner Rounding Function I & II
30) Constant Surface Speed Control
31) Continuous Threading Cycle
32) Cutting Feed rate: 1 - 8,000 mm/min
33) Cycle Time Check Function
This machine also has the U121B live front work attachment! Which is probably a $20K option in today’s $.
L51620U121B Front Live Tool Unit including Two GSE307 $7,700.00
L51620U151B Back Live Tool Unit including Two GSE307 $7,700.00
The front or back live tool unit replaces the
existing stationary I.D. tool blocks and offers
up to two live tools for end working.
Also included are sleeves to accommodate
stationary tools in live tool positions when
necessary.
(Note: U121B and U151B cannot install at the same time)
