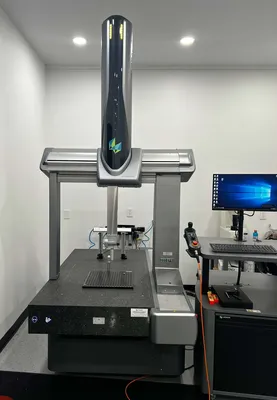

HEXAGON GLOBAL S GREEN 7.10.7 COORDINATE MEASURING MACHINE New 10/2022
Have one to sell?
ConditionUsed
1 available
HEXAGON GLOBAL S GREEN 7.10.7 COORDINATE MEASURING MACHINE New 10/2022 (used)

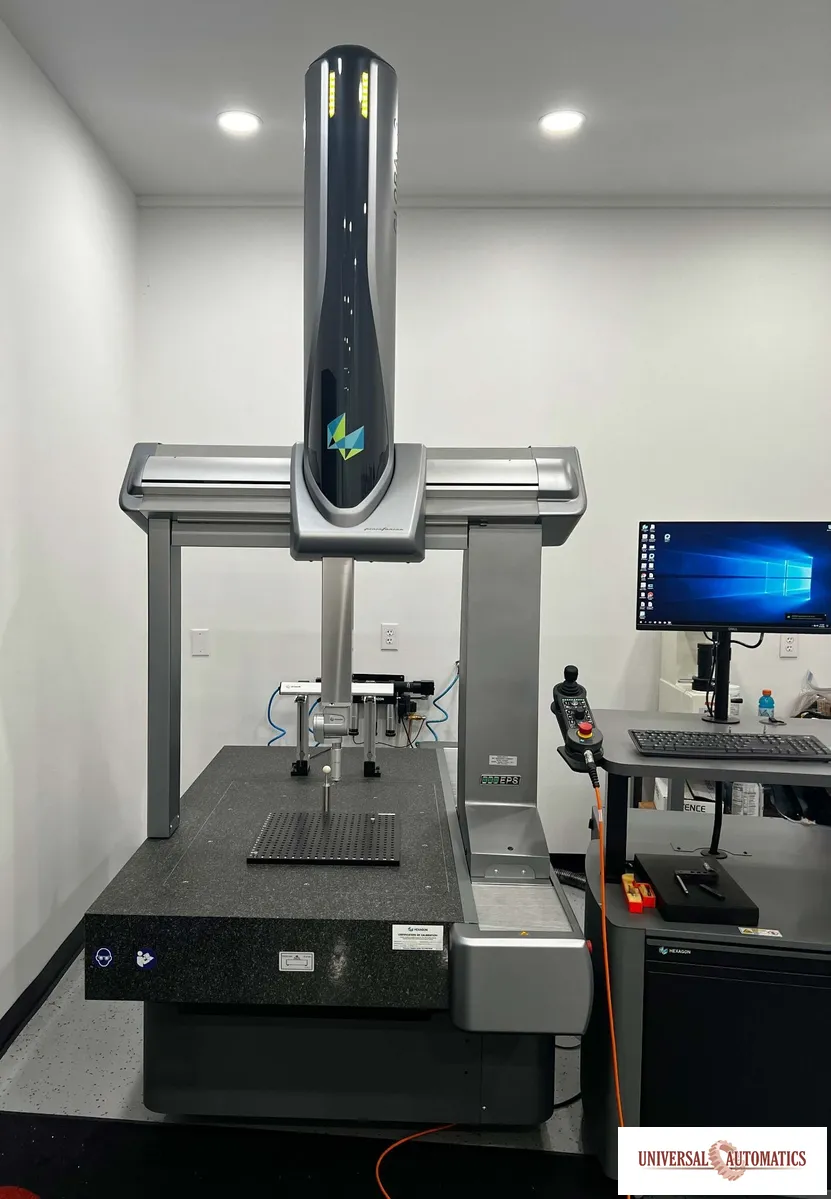

The Hexagon Global S Green 7.10.7 is a high-accuracy, bridge-type coordinate measuring machine (CMM) designed by Hexagon Manufacturing Intelligence featuring Pininfarina industrial design. The "Green" tier represents the foundational performance level within the Global S series, Optimized for multi-sensor capabilities, eco-efficiency, and standard high-precision inspection in manufacturing QC labs.
Core Technical Specifications (General specs to be verified by buyer):
• Measuring Range (Work Envelope):
• X-Axis: 27.56" (700 mm)
• Y-Axis: 39.37" (1000 mm)
• Z-Axis: 25.98" (660 mm)

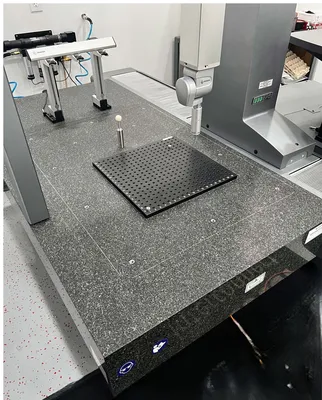

• Surface Plate Work Area: 27.55" x 64.96" (700 mm x 1650 mm) solid granite base featuring a DIN 876/III grade rating and a grid of threaded mounting points.
• Maximum Part Weight Capacity: 1,984 lbs (900 kg).
• System Resolution: 0.005 µm (0.0002 mil) utilizing METALLUR high-resolution linear scales.
• Guideway & Axis System: Preloaded contactless air bearings on all axes supported by a solid granite base with an integrated dovetail guide.
• Drive System: Low-maintenance flat and V-ribbed belts driven by a DC800 or DC241 controller.
• Physical Machine Weight: Approximately 2,800 lbs (1,270 kg).
• Overall Machine Dimensions: Approx. 50.28" L x 75.12" W x 109.33" H.
Operational & Environmental Specs
• Power Supply Requirements: 100/120/220/240V ±10%, 50/60 Hz, 1.6 KVA.
• Air Supply Requirements: 0.5 MPa minimum pressure, adhering to ISO 8573/1 Class 4 air quality specs, consuming ~90 Nl/min.
• Operating Temperature Range: Standard configuration operates optimally within an extended range of 61°F to 79°F (16°C to 26°C).
• Relative Humidity: 20% to 90% non-condensing.
Standard Hardware & Software Configurations
• Software Compatibility: Native integration with PC-DMIS (CAD, CAD++, or Touch modules) or Quindos 7.
• Probing & Sensor Support: Typically configured with motorized indexable probe heads like the HH-AS8-T2.5 (2.5° indexing steps) combined with continuous contact analog scanning sensors like the HP-S-X1H or HP-S-X3C. It also supports tactile trigger probes (TP200) and optical/laser non-contact sensors (HP-L series, HP-C-VE).

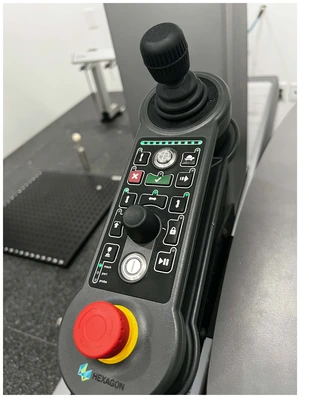

• Accessories: Often paired with an automatic stylus changer rack (such as the HR-X-400 or HR-R5 series), a Next Jogbox for manual manipulation, and built-in multi-sensor real-time thermal compensation.
• Eco Features: Includes an automated "ECO Mode" that handles power-down cycles during idle times to optimize energy consumption

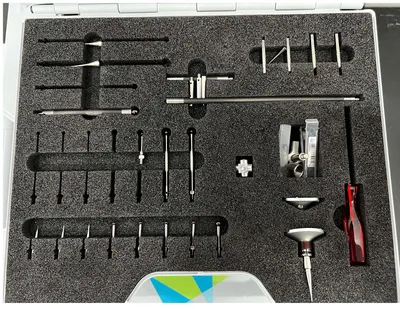

Probes ranging from .50-8.00mm
Probe extensions

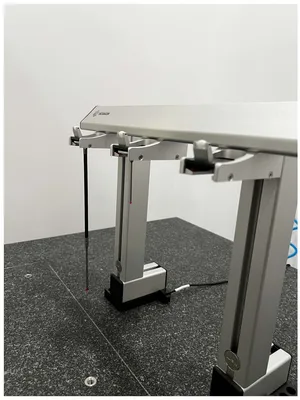

Probe Rack

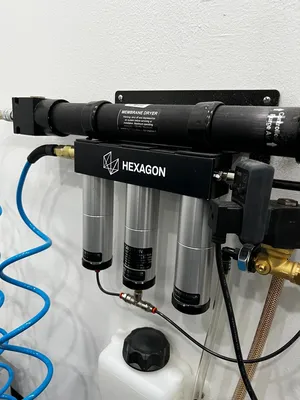

Air filtration system

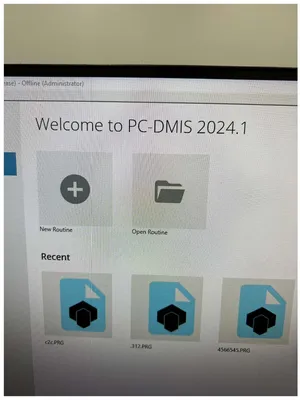

PC-DIMS-2024.1Software

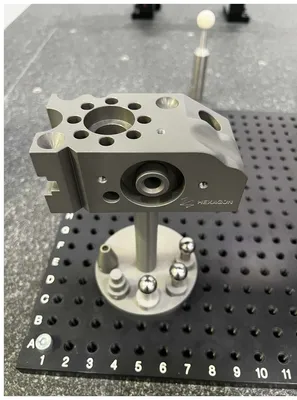

Hexagon demo block

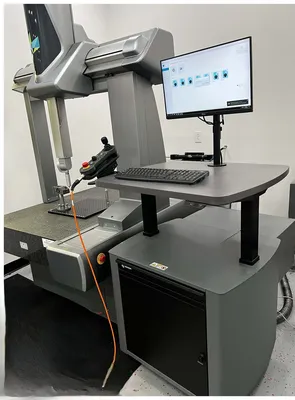

Hexagon computer and work station
2-Hexagon metrology boars

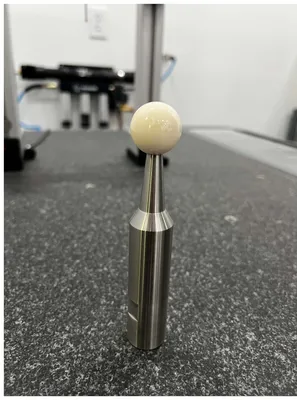

1-Calibration sphere

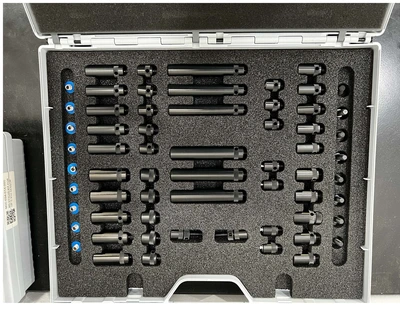

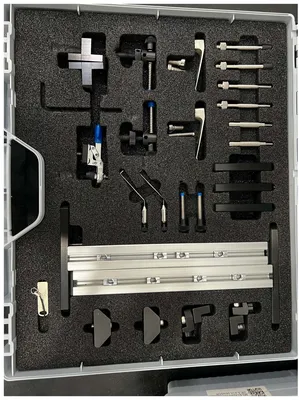

CMM modular fixturing kit
HEXAGON GLOBAL S GREEN 7.10.7 COORDINATE MEASURING MACHINE New 10/2022 (used)
The Hexagon Global S Green 7.10.7 is a high-accuracy, bridge-type coordinate measuring machine (CMM) designed by Hexagon Manufacturing Intelligence featuring Pininfarina industrial design. The "Green" tier represents the foundational performance level within the Global S series, Optimized for multi-sensor capabilities, eco-efficiency, and standard high-precision inspection in manufacturing QC labs.
Imperial
| X | 27.5" |
| Y | 39.4" |
| Z | 26" |
Core Technical Specifications (General specs to be verified by buyer):
• Measuring Range (Work Envelope):
• X-Axis: 27.56" (700 mm)
• Y-Axis: 39.37" (1000 mm)
• Z-Axis: 25.98" (660 mm)
• Surface Plate Work Area: 27.55" x 64.96" (700 mm x 1650 mm) solid granite base featuring a DIN 876/III grade rating and a grid of threaded mounting points.
• Maximum Part Weight Capacity: 1,984 lbs (900 kg).
• System Resolution: 0.005 µm (0.0002 mil) utilizing METALLUR high-resolution linear scales.
• Guideway & Axis System: Preloaded contactless air bearings on all axes supported by a solid granite base with an integrated dovetail guide.
• Drive System: Low-maintenance flat and V-ribbed belts driven by a DC800 or DC241 controller.
• Physical Machine Weight: Approximately 2,800 lbs (1,270 kg).
• Overall Machine Dimensions: Approx. 50.28" L x 75.12" W x 109.33" H.
Operational & Environmental Specs
• Power Supply Requirements: 100/120/220/240V ±10%, 50/60 Hz, 1.6 KVA.
• Air Supply Requirements: 0.5 MPa minimum pressure, adhering to ISO 8573/1 Class 4 air quality specs, consuming ~90 Nl/min.
• Operating Temperature Range: Standard configuration operates optimally within an extended range of 61°F to 79°F (16°C to 26°C).
• Relative Humidity: 20% to 90% non-condensing.
Standard Hardware & Software Configurations
• Software Compatibility: Native integration with PC-DMIS (CAD, CAD++, or Touch modules) or Quindos 7.
• Probing & Sensor Support: Typically configured with motorized indexable probe heads like the HH-AS8-T2.5 (2.5° indexing steps) combined with continuous contact analog scanning sensors like the HP-S-X1H or HP-S-X3C. It also supports tactile trigger probes (TP200) and optical/laser non-contact sensors (HP-L series, HP-C-VE).
• Accessories: Often paired with an automatic stylus changer rack (such as the HR-X-400 or HR-R5 series), a Next Jogbox for manual manipulation, and built-in multi-sensor real-time thermal compensation.
• Eco Features: Includes an automated "ECO Mode" that handles power-down cycles during idle times to optimize energy consumption
Probes ranging from .50-8.00mm
Probe extensions
Probe Rack
Air filtration system
PC-DIMS-2024.1Software
Hexagon demo block
Hexagon computer and work station
2-Hexagon metrology boars
1-Calibration sphere
CMM modular fixturing kit
