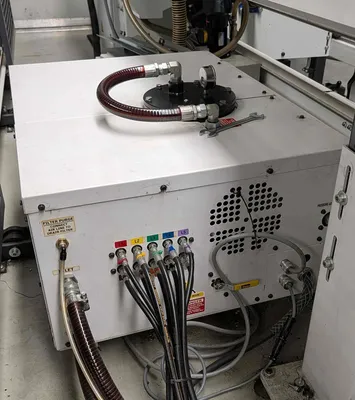

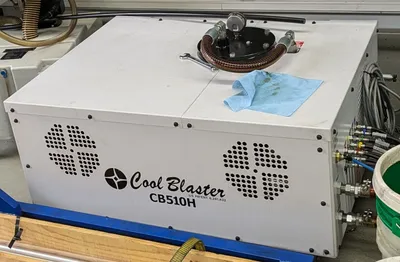

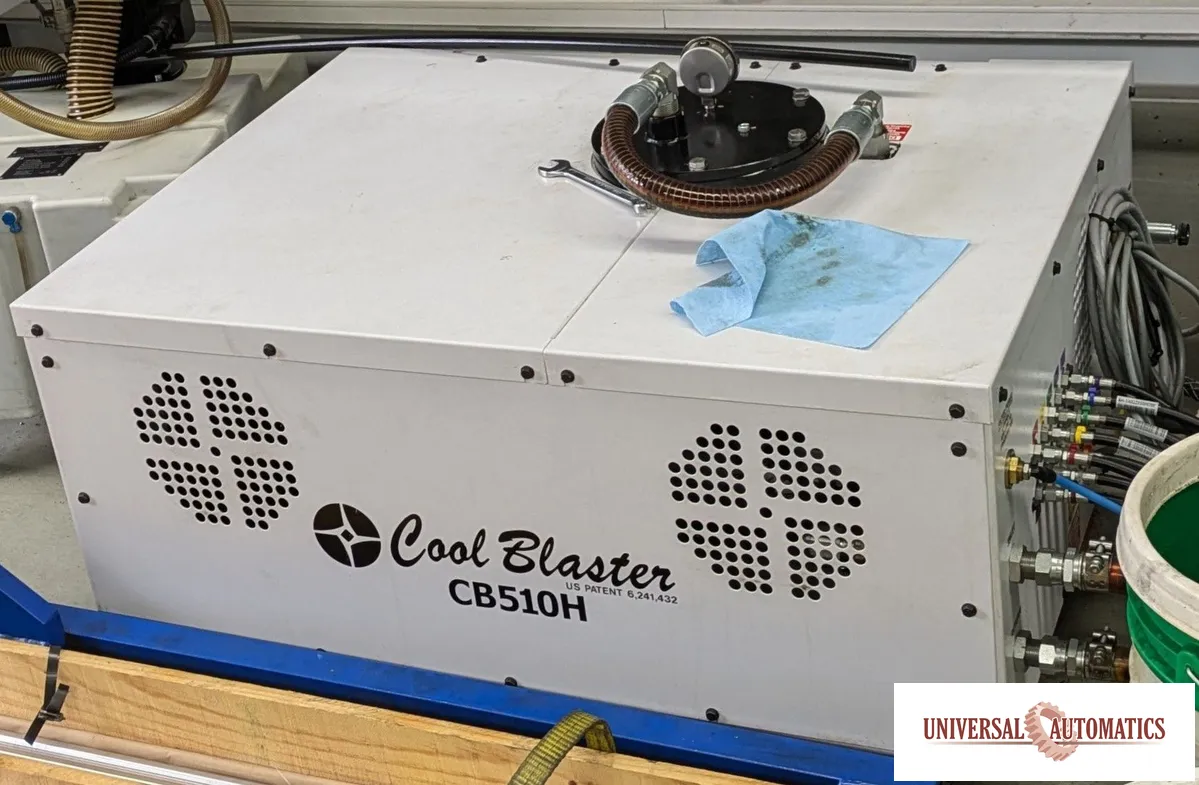

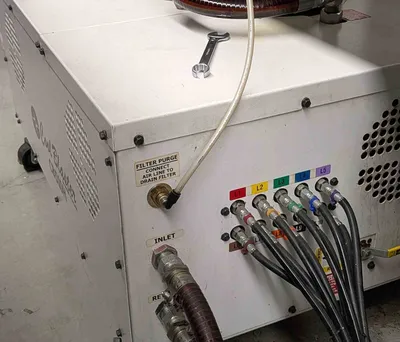

COOL BLASTER CB510H 10-Line / 2000 PSI w/Heat Exchange High Pressure Coolant System New 2016
Have one to sell?
ConditionUsed
1 available
COOL BLASTER CB510H 10-Line / 2000 PSI w/Heat Exchange High Pressure Coolant System (used) New 2016 - for Citizen Swiss Type CNC Lathes - very good condition and low usage.
Core Specifications
• Max Pressure: 2,000 PSI
• Flow Rate: 6.5 GPM (Gallons Per Minute)
• Motor: 7.5 HP (1,725 RPM)

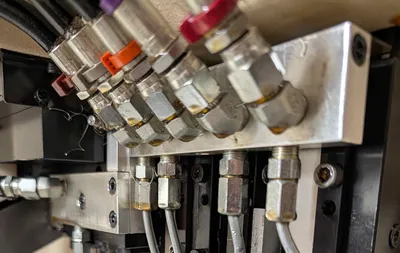

• Coolant Lines: 10 independent high-pressure coolant lines
• Filtration: Continuous 5-micron filtration
• Design Type: Horizontal design
• Dimensions: 19.5" wide x 51.4" long x 43.4" high (typical footprint for vertical/compact frames in this class)
Electrical Requirements
• Standard Voltage: 200/230V at 40.0 full-load amps (3-phase)
• Optional Voltage: 440/480V at 30.0 full-load amps
Key Features
• Heat Exchanger: Integrated heat exchange system equipped with a 2,000 CFM fan for thermal management.
• Booster Pump: Independent feed/booster pump to help extend filter bag life.
• Control & Safety: PLC control integration, diagnostic indicator lights, and a restricted-filter automatic shut-off.
• Air Filtration: Washable air inlet filter.
Note: Standard distribution kits (hoses, fittings, and manifold blocks) are typically sold separately depending on your specific lathe mode.
COOL BLASTER CB510H 10-Line / 2000 PSI w/Heat Exchange High Pressure Coolant System (used) New 2016 - for Citizen Swiss Type CNC Lathes - very good condition and low usage.
Core Specifications
• Max Pressure: 2,000 PSI
• Flow Rate: 6.5 GPM (Gallons Per Minute)
• Motor: 7.5 HP (1,725 RPM)
• Coolant Lines: 10 independent high-pressure coolant lines
• Filtration: Continuous 5-micron filtration
• Design Type: Horizontal design
• Dimensions: 19.5" wide x 51.4" long x 43.4" high (typical footprint for vertical/compact frames in this class)
Electrical Requirements
• Standard Voltage: 200/230V at 40.0 full-load amps (3-phase)
• Optional Voltage: 440/480V at 30.0 full-load amps
Key Features
• Heat Exchanger: Integrated heat exchange system equipped with a 2,000 CFM fan for thermal management.
• Booster Pump: Independent feed/booster pump to help extend filter bag life.
• Control & Safety: PLC control integration, diagnostic indicator lights, and a restricted-filter automatic shut-off.
• Air Filtration: Washable air inlet filter.
Note: Standard distribution kits (hoses, fittings, and manifold blocks) are typically sold separately depending on your specific lathe mode.
